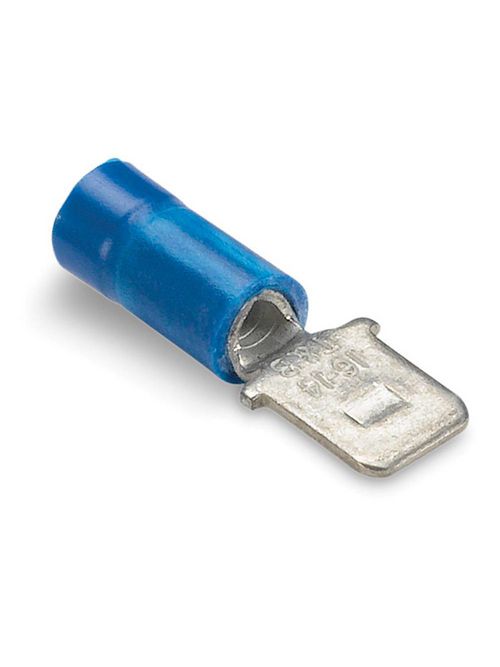

Thomas & Betts 14RB-250T 16 to 14 AWG Electrotinned Brass Vinyl Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$149.88/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 14RB-250T
North Coast Part # 160911

Specifications

Ordering

  • EAN: 5414363137955
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .005 lb2.268 g

Container Information

  • Package Level 1 Units: 100 piece
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 9.5 in241 mm
  • Package Level 2 Height: 8.9 in226 mm
  • Package Level 2 Depth / Length: 15.2 in386 mm
  • Package Level 3 Units: 5000 piece
  • Package Level 3 Width: 8.1 in206 mm
  • Package Level 3 Height: 10.2 in259 mm
  • Package Level 3 Depth / Length: 12.2 in310 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Blue
  • Insulation Material: Vinyl
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Male Disconnect
  • Standards: UL E66716
  • Surface Finishing: Tin Plated
  • UPC: 786210800783

Classifications

  • ETIM 6: EC000516 - Round or flat plug/receptacle
  • ETIM 7: EC000516 - Round or flat plug/receptacle
  • UNSPSC: 39121447
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4667 >> Wire terminal disconnect

Overview

UPC 78621080078
GTiN 05414363137955
Finish Electro-Tin Plated
Color Blue
Voltage 600 Volt
Insulation Type Vinyl
Material Brass
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Type Short Sleeve
Conductor Size 14-16 AWG
Standard UL E66716
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
