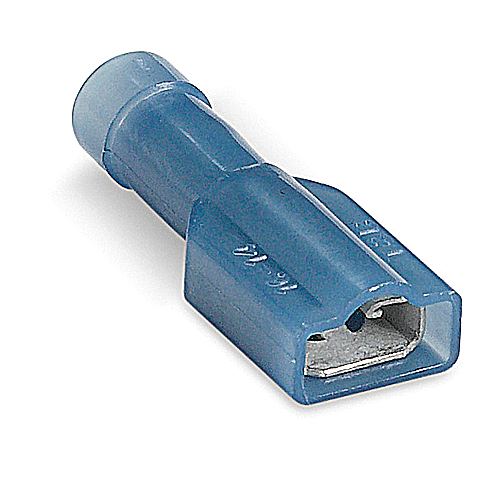

Thomas & Betts 14RB-2577 Nylon Fully-Insulated Female Disconnect - 16-14, .250x.032tab
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$158.94/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 14RB-2577
North Coast Part # 161224

Features

  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

General

  • Tab Size: .250 x .032
  • Finish: Electro Tin-Plated
  • Color: Blue
  • Disconnect Type: Female - 250 Series
  • Terminal Series: RB
  • Wire Range: 16-14
  • Insulation Type: Fully Insulated Nylon
  • Material: Brass

Dimension Information

  • Maximum Insulation (inches): .185
  • A (inches): .97
  • B (inches): .38
  • Stock Thickness: .03

Specifications

  • Flammability Rating: UL 94 V-2
  • Temperature Rating: 105°C
  • Voltage Rating: 600V

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003

Packaging

  • T&B Sold in UOM: Each
  • Inner Package: 50
  • Package Width: 9.6
  • Alternate Package Qty: RB2573
  • Package Type: Standard
  • T&B Weight Per UOM: 5 lbs. per 1000
  • Order Multiple: 50
  • Package Length: 15
  • Outer Package: 250
  • Package Height: 8.9

Application Support

Certifications


  • UL
  • CSA
  • RoHS Compliance: Yes (exemption 06)

Overview

UPC 78621083932
Item Long Description Nylon Fully Insulated Female Disconnect, Length 1.01 Inches, Width .38 Inches, Maximum Insulation .185, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated
GTiN 05414363135067
Finish Electro-Tin Plated
Color Blue
Voltage 600 Volt
Type Long Sleeve
Insulation Type Nylon,Polyamide
Material Brass
Conductor Size 14-16 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
