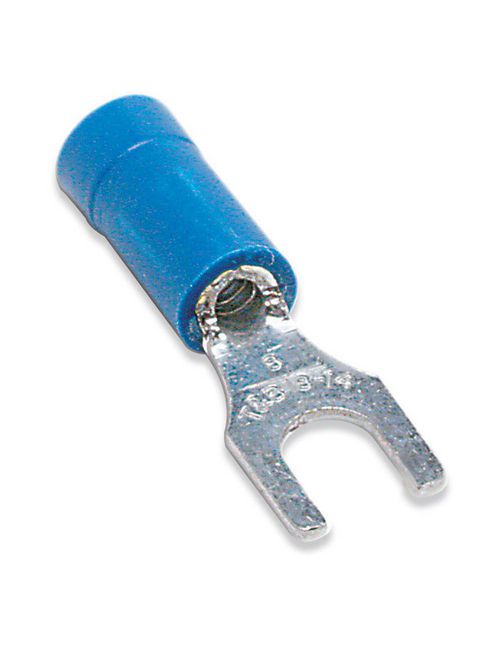

Thomas & Betts 14RB-6FCP 18-14 AWG #6 Blue Insulated Vinyl Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$114.34/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 20 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 14RB-6FCP
North Coast Part # 211920

Features

  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.

General

  • Wire Range: 18-14
  • Insulation Type: Insulated Vinyl
  • Color: Blue
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Stud Size: #6
  • Terminal Series: RB

Dimension Information

  • A (inches): .97
  • B (inches): .31
  • M (inches): .81
  • C (inches): .27
  • Maximum Insulation (inches): .170
  • Stock Thickness: .03

Specifications

  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0
  • Temperature Rating: 105°C

Tooling

  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
  • Recommended Tool: ERG4001

Packaging

  • Package Type: Mini-Pack
  • T&B Sold in UOM: Each
  • Package Length: 16.7
  • Inner Package: 20
  • T&B Weight Per UOM: 3.75 lbs. per 1000
  • Order Multiple: 20
  • Outer Package: 100
  • Alternate Package Qty: 14RB6F
  • Package Height: 4.19
  • Package Width: 7.2

Application Support

Certifications


  • UL
  • CSA
  • RoHS Compliance: Yes

Overview

UPC 78621089930
GTiN 00786210899305
Length 0.97 in
Finish Tin Plated
Width 7.2 in
Color Blue
Voltage 600 Volt
Type Vinyl Insulated Fork Terminal
Thickness .03 in
Barrel Type Brazed Seam
Insulation Type Insulated Vinyl
Material Copper
Stud Size #6
Terminal Type RB
Conductor Size 18-14 AWG
Height 4.19 in
Wire Size 18-14 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material PVC
Flamability Class Rated V-0 Per UL94
Sub Brand Sta-Kon
