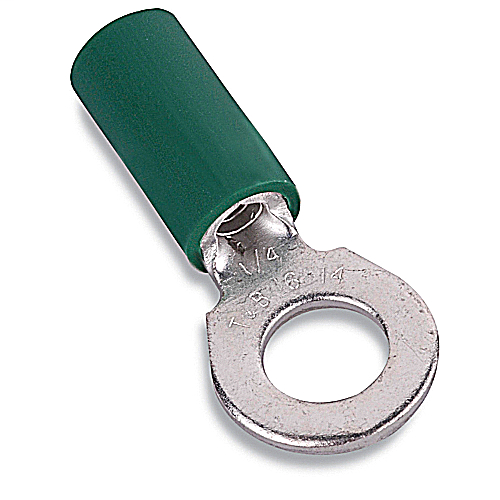

Thomas & Betts 14RBC-516 5/16 Inch Bolt Hole 16-14 AWG Wire Range Insulated Vinyl Heavy Duty Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
$203.63/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 14RBC-516
North Coast Part # 68428

Features

  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.

General

  • Insulation Type: Insulated Vinyl
  • Wire Range: 16-14 heavy duty
  • Terminal Series: RBC
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Stud Size: 5/16
  • Color: Green

Dimension Information

  • Stock Thickness: .03
  • C (inches): .38
  • A (inches): 1.29
  • Maximum Insulation (inches): .210
  • B (inches): .54
  • M (inches): 1.03

Specifications

  • Temperature Rating: 105°C
  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT2000, ERG4001
  • Recommended Tool: WT2130A

Packaging

  • Outer Package: 250
  • Package Length: 12
  • Package Type: Standard
  • Package Width: 10
  • Alternate Package Qty: RBC727
  • T&B Weight Per UOM: 8.75 lbs. per 1000
  • T&B Sold in UOM: Each
  • Order Multiple: 50
  • Inner Package: 50
  • Package Height: 7

Application Support

Certifications

  • RoHS Compliance: Yes
  • CSA
  • UL

Overview

UPC 78621081685
GTiN 05414363935582
Finish Tin Plated
Width 10 in
Color Green
Voltage 600 Volt
Type Short Sleeve, Heavy Duty
Thickness .03 in
Barrel Type Brazed/Overlapping Seam, Funnel
Insulation Type Insulated Vinyl
Material Copper
Stud Size 5/16 in
Terminal Type RBC
Conductor Size 16-14 AWG
Height 7 in
Wire Size 16-14 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material PVC
Flamability Class Rated V-0 Per UL94
Used With Round Conductors
Sub Brand Sta-Kon
