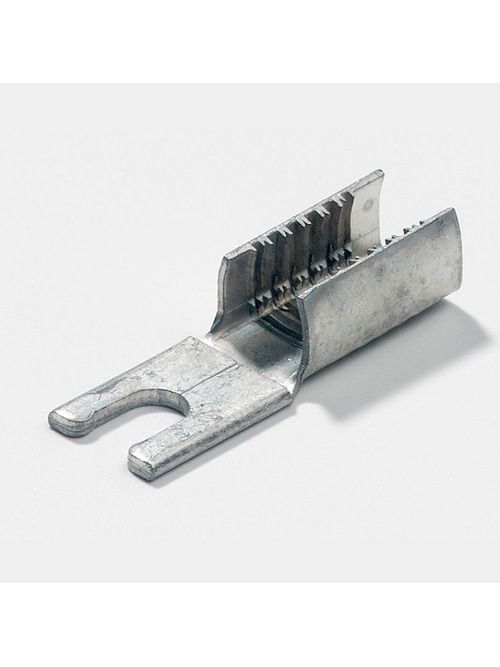

T&B 22F086 INSUL PRCG FORK TERM*NON-RETURNABLE TO MANUFACTURER*

Features

• Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
• For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121432 Electrical terminals
• IGCC: 4603 Electrical terminals
• Brand Name: Dragon Tooth
• Type: Fork Terminal
• Special Features: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
• Application: For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
• Standard: UL E9809
• Material: Copper

European Specifications (ETIM)

• ETIM: EC001059 Crimp splices for copper conductor
• AWG-range: 16-12
• Model: Standard version
• Sleeve form: Short
• Suitable for solid cores: N
• Useful for stranded conductors: N
• Suitable for fine strand conductors: N
• Suitable for insulated varnish: Y
• Suitable for round conductors: Y
• Suitable for flat conductors: Y
• Material: Copper
• Surface protection: Tinned
• Insulation: None
• Voltage row: Up to 600 V
• Type of connection: End connector
• Oil stop/centre bar: N

Packaging

• Inner Quantity: 1000
• Inner Dimensions (inches): 6.3x3.3x4.69
• Outer Quantity: 5000
• Outer Dimensions (inches): 10.5x8.7x7.2
• Weight Uom: 2.5 lbs. per 1000
