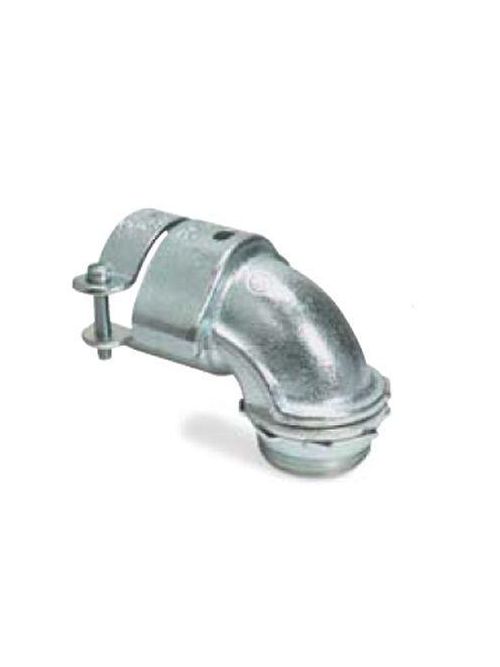

Thomas & Betts 266-TB 3/8 Inch 90 Degree Connector
$512.40/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 266-TB
North Coast Part # 63456

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121419 Flex connectors
  • IGCC: 4573 Flex connectors
  • Brand Name: T&B
  • Type: Armored Cable/Flexible Metal Conduit Fittings
  • Special Features: Cap Lifts off by Simply Loosening Screws Part Way, Only Two Screws to Tighten
  • Application: For Use with Armored Cable and Flexible Metal Conduit
  • Standard: UL E23018, CSA 2884
  • Size: 3/8 Inch
  • Connection: 90 Degree
  • Conductor Range: 0.406 to 0.656 Inch
  • Material: Steel
  • Finish: Zinc Plated
  • Color: Metallic
  • Insulation: No

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 3/8 inch
  • Model: 90°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Connection type screw connection to housing: Other
  • Material housing: Steel
  • Thread length: 36.51mm
  • Approved in combination with protective conduit CSA: Y
  • Approved in combination with protective conduit UL: Y

Packaging

  • Inner Quantity: 50
  • Inner Dimensions (inches): 8.1x5.2x4.2
  • Outer Quantity: 100
  • Outer Dimensions (inches): 8.7x5.5x8.7
  • Weight Uom: 12.5 lbs. per 100

Overview

UPC 78621000266
Finish Zinc Plated
Color Metallic
Material Steel
Construction Type External Thread
Connection Type 90 Degree
Thread Length 36.51 mm
Family Brand Name Thomas & Betts
Insulated? No
Carton Qty 50
Housing Material Steel
Box Quantity 100
GTiN 00786210002668
Size 3/8 Inch
Type Armored Cable/Flexible Metal Conduit Fittings
Applications For Use with Armored Cable and Flexible Metal Conduit
