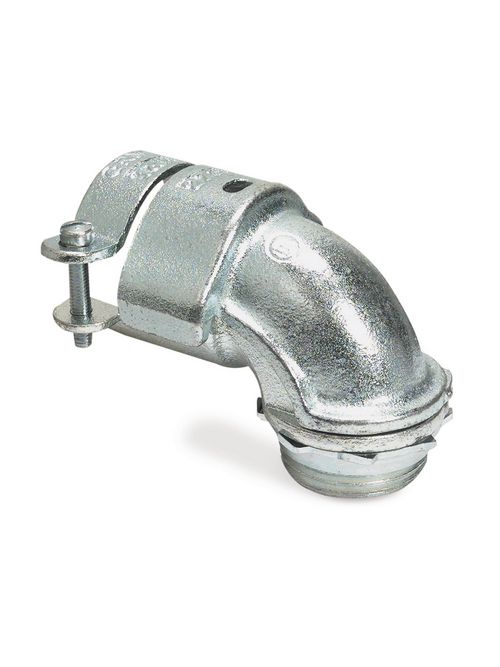

Thomas & Betts 273-TB 1 Inch 90 Degree Squeeze Connector

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121419 Flex connectors
• IGCC: 4573 Flex connectors
• Brand Name: T&B
• Type: Armored Cable/Flexible Metal Conduit Fittings
• Special Features: Cap Lifts off by Simply Loosening Screws Part Way, Only Two Screws to Tighten
• Application: For Use with Armored Cable and Flexible Metal Conduit
• Standard: UL E23018, CSA 2884
• Size: 1 Inch
• Connection: 90 Degree
• Conductor Range: 1.187 to 1.406 Inch
• Material: Malleable Iron
• Finish: Zinc Plated
• Color: Metallic
• Insulation: No

European Specifications (ETIM)

• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 1 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Other
• Material housing: Other
• Thread length: 61.91mm
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y

Packaging

• Inner Quantity: 5
• Inner Dimensions (inches): 6x4x4
• Outer Quantity: 25
• Outer Dimensions (inches): 21x11.3x5.8
• Weight Uom: 61.5 lbs. per 100
