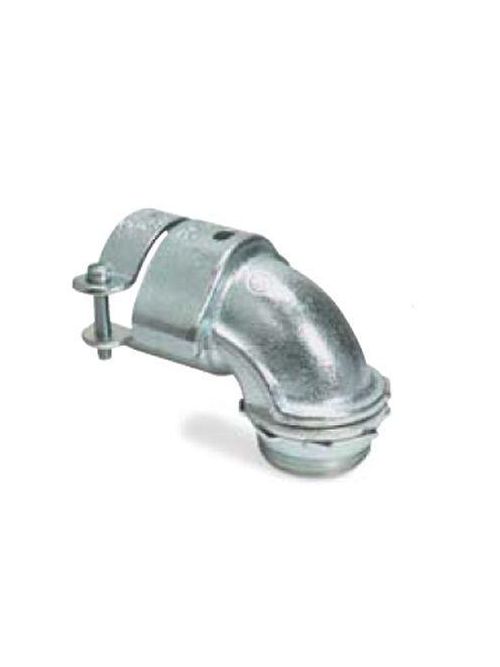

Thomas & Betts 284-TB 3-1/2 Inch 90 Degrees Zinc Plate Malleable Iron Squeeze Connector

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121419 Flex connectors
• IGCC: 4573 Flex connectors
• Brand Name: T&B
• Type: Armored Cable/Flexible Metal Conduit Fittings
• Special Features: Cap Lifts off by Simply Loosening Screws Part Way, Only Two Screws to Tighten
• Application: For Use with Armored Cable and Flexible Metal Conduit
• Standard: UL E23018, CSA 2884, cULus
• Size: 3-1/2 Inch
• Connection: 90 Degree
• Conductor Range: 3.700 to 4.220 Inch
• Material: Malleable Iron
• Finish: Zinc Plated
• Color: Metallic
• Insulation: No

European Specifications (ETIM)

• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 3 1/2 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Other
• Material housing: Other
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y

Packaging

• Outer Quantity: 1
• Outer Dimensions (inches): 18x16.5x38.5
• Weight Uom: 12.75 lbs. Each
