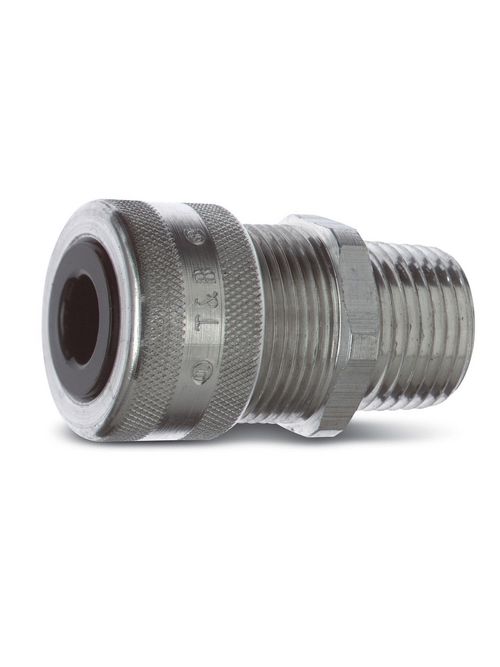

Thomas & Betts 2921AL 1/2 Inch Width .310 to .560 Inch Cord Range Ranger Aluminum Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,421.62/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 2921AL
North Coast Part # 12419

Features

  • Extended range with superior strain relief.
  • Reduced overall size, fits into tighter spaces.
  • Gland nut designed to restrict cable bending.
  • Provide a means for passing a cord cable into an enclosure through a bulkhead
  • Suitable for Ordinary, Wet or Dry locations.
  • Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b).

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121431 Cable gland connector
  • IGCC: 4601 Cable gland connector
  • Brand Name: T&B
  • Type: Cord Connectors-Straight
  • Special Features: Extended Range with Superior Strain Relief
  • Application: Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
  • Standard: UL E13938, CSA 52391
  • Size: 1/2 Inch
  • Conductor Range: 0.310 to 0.560 Inch
  • Material: Aluminum
  • Color: Metallic
  • Environmental Conditions: Ordinary, Wet, or Dry Locations

European Specifications (ETIM)

  • ETIM: EC000441 Cable screw gland
  • Thread type: NPT
  • Nominal thread size inch/gas pipe thread: 1/2 inch
  • Thread length: 15.875mm
  • Suitable for cable diameter: 7.874-14.224mm
  • Material: Metal
  • Material quality: Aluminium
  • Colour: Natural colour
  • Model: Straight
  • Strain relief: Y

Packaging

  • Inner Quantity: 25
  • Inner Dimensions (inches): 6x4.5x4
  • Outer Quantity: 100
  • Outer Dimensions (inches): 13x9.9x4.1
  • Weight Uom: 8 lbs. per 100

Overview

UPC 78621079714
GTiN 05414363140337
Size 1/2 Inch
Color Metallic
Type Straight
Material Aluminum
Conductor Size 0.31 - 0.56 in
Applications Provide a Means for Passing a Cord Cable into an Enclosure Through a Bulkhead
Trade Size 1/2 Inch
Thread Length 15.87 mm
Family Brand Name Thomas & Betts
Carton Qty 25
Box Quantity 100
TC Connection NPT
Thread Type NPT
