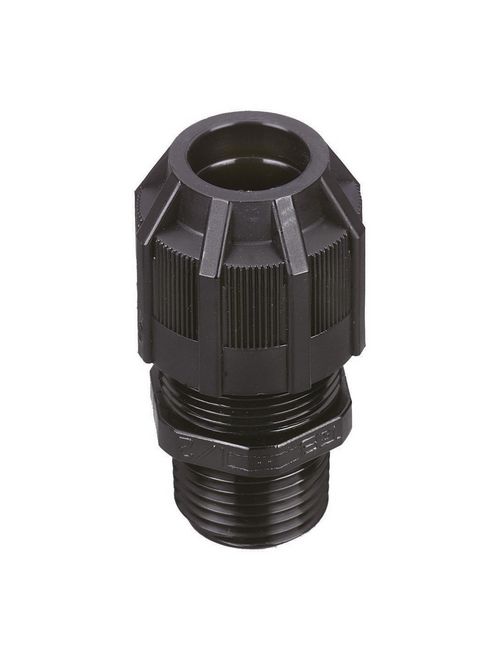

Thomas & Betts 2921NM 1/2 Inch .310 - .560 Cord Range Nylon Ranger Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,244.01/c (100 ea)
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 2921NM
North Coast Part # 14107


  • Extended range with superior strain relief.
  • Reduced overall size, fits into tighter spaces.
  • Gland nut designed to restrict cable bending.
  • Provide a means for passing a cord cable into an enclosure through a bulkhead
  • Suitable for Ordinary, Wet or Dry locations.


North American Specifications (UNSPSC)

  • UNSPSC: 39121431 Cable gland connector
  • IGCC: 4601 Cable gland connector
  • Brand Name: T&B
  • Type: Cord Connectors-Straight
  • Special Features: Extended Range with Superior Strain Relief
  • Application: Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
  • Standard: UL E13938, CSA 52391
  • Size: 1/2 Inch
  • Conductor Range: 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
  • Material: Polyamide/Nylon 6.6
  • Color: Black
  • Temperature Rating: -34 to +105 Degrees C
  • Environmental Conditions: Ordinary, Wet, or Dry Locations

European Specifications (ETIM)

  • ETIM: EC000441 Cable screw gland
  • Thread type: NPT
  • Nominal thread size inch/gas pipe thread: 1/2 inch
  • Thread length: 15.875mm
  • Suitable for cable diameter: 7.9-14.2mm
  • Material: Plastic
  • Material quality: Polyamide (PA)
  • Degree of protection (IP): IP65
  • Colour: Black
  • Model: Straight
  • Strain relief: Y
  • Operating temperature: -34-+105°C


  • Inner Quantity: 25
  • Inner Dimensions (inches): 6x5x4
  • Outer Quantity: 100
  • Outer Dimensions (inches): 12.75x8.75x5.75
  • Weight Uom: 4.5 lbs. per 100


UPC 78621079741
GTiN 05414363101734
Size 1/2 Inch
Color Black
Operating Temperature -34 To 105 C
Type Straight
Material Nylon 6/6
Conductor Size 0.31 - 0.56 in
Applications Provide a Means for Passing a Cord Cable into an Enclosure Through a Bulkhead
Trade Size 1/2 Inch
Thread Length 15.87 mm
Temperature Rating -34 to 105 C
Family Brand Name Thomas & Betts
Carton Qty 25
Box Quantity 100
TC Connection NPT
IP Rating IP65
Thread Type NPT
