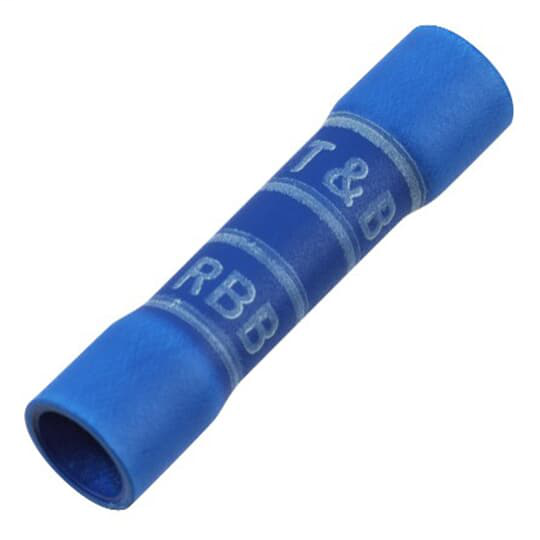

Thomas & Betts 2RB14X 1.1 Inch Length 16-14 AWG Wire Range Expanded Insulated Vinyl Butt Splice

Specifications

Ordering

• EAN: 5414363140573
• Customs Tariff Number: 8536904000

Dimensions

• Product Net Weight: .005 lb2.268 g

Container Information

• Package Level 1 Units: 100 piece
• Package Level 1 Width: 2.7 in69 mm
• Package Level 1 Height: 3.7 in94 mm
• Package Level 1 Depth / Length: 7 in178 mm
• Package Level 2 Units: 500 piece
• Package Level 2 Width: 9.3 in236 mm
• Package Level 2 Height: 8.7 in221 mm
• Package Level 2 Depth / Length: 14.9 in378 mm
• Package Level 3 Units: 5000 piece

Additional Information

• Brand / Label: Sta-Kon
• Color: Blue
• Material: Copper
• Number of Batteries: 0
• Product Name: ELECTRICAL SPLICE
• Product Type: Vinyl Insulated Butt Splice
• Special Functions: In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
• Standards: UL E9809
• Surface Finishing: Electro -Tin Plated
• Temperature Range: 105 °C
• UPC: 786210807201
• Voltage Rating: 600 V

Classifications

• ETIM 6: EC001059 - Crimp splices for copper conductor
• ETIM 7: EC001059 - Crimp splices for copper conductor
• UNSPSC: 39121449
• WEEE Category: Product Not in WEEE Scope
• IDEA Granular Category Code (IGCC): 4669 >> Wire or cable compression splice
