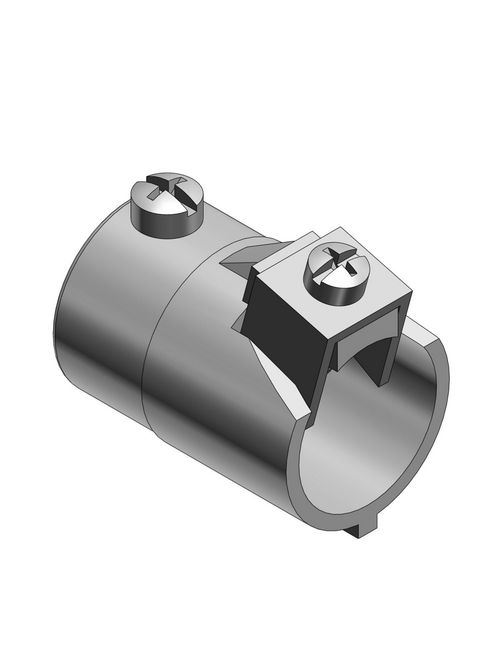

Thomas & Betts 503-TB Combination Coupling

Features

• To couple 1/2 inch flexible metal conduit to 1/2 inch EMT conduit.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121434 Electrical metallic tubing EMT connectors
• IGCC: 4611 Electrical metallic tubing EMT connectors
• Brand Name: T&B
• Type: Armored Cable/Flexible Metal Conduit Fittings
• Special Features: TITE-BITE Design Holds Flexible Metal Cable Firmly In Place with a Single Screw
• Application: For Use with Armored Cable and Flexible Metal Conduit
• Standard: UL E23018, CSA
• Size: 1/2 Inch
• Material: Malleable Iron
• Finish: Zinc Plated-Chromate Dipped

European Specifications (ETIM)

• ETIM: EC000939 Coupler for installation tubes
• Material: Metal
• Material quality: Other
• Surface protection: Other
• Model: Conical
• Two piece: N
• With inspection opening and cover: N

Packaging

• Inner Quantity: 10
• Inner Dimensions (inches): 4.3x6.5x4.19
• Outer Quantity: 100
• Outer Dimensions (inches): 21.5x8.5x3.5
• Weight Uom: 23 lbs. per 100
