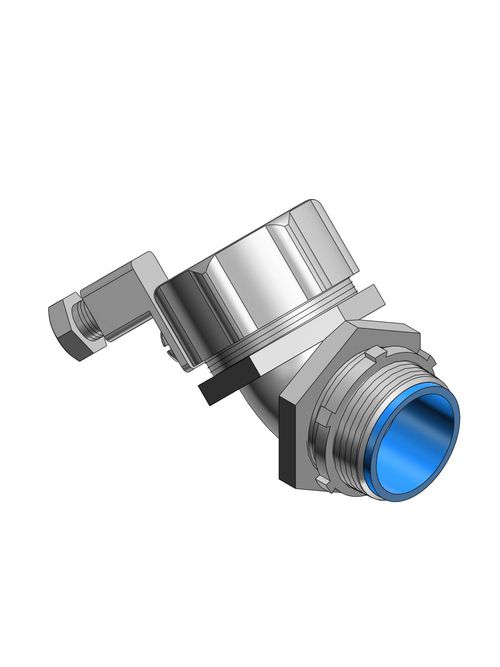

Thomas & Betts 5341GR 3/8 Inch 45 Degree Liquidtight Grounding Connector
Product image thumbnail 0
Product image thumbnail 1
$3,569.90/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 5341GR
North Coast Part # 1007526

Features

  • Ability to install quickly with low torque effort

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121420 Liquid tight connectors
  • IGCC: 4585 Liquid tight connectors
  • Brand Name: T&B
  • Type: Grounding Connectors-45 Degree
  • Application: To Positively Bond Conduit to Box or Enclosure
  • Standard: UL E3060, CSA
  • Size: 3/8 Inch
  • Material: Malleable Iron
  • Finish: Electro Zinc Plated/Chromate Coating

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 3/8 inch
  • Model: 45°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Connection type screw connection to housing: Thread
  • Thread type: NPT
  • Thread connection size: Other
  • One-piece: N
  • Material housing: Other

Packaging

  • Inner Quantity: 25
  • Inner Dimensions (inches): 4.2x4.3x6.3
  • Outer Quantity: 50
  • Outer Dimensions (inches): 8.8x6.2x4.5
  • Weight Uom: 20 lbs. per 100

Overview

UPC 78621090002
GTiN 00786210900025
Finish Chromate Coating,Electro Zinc-Plated
Size 3/8 Inch
Type Grounding, 45
Material Malleable Iron
Applications For Control and Power Cable Applications
Construction Type External Thread
Family Brand Name Thomas & Betts
Carton Qty 25
Housing Material Other
Box Quantity 50
Thread Type NPT
Diameter 1-5/32 in
Conductor Size 14-8 AWG
Trade Size 3/8 Inch
Thread Length 9/16 in
TC Connection Screw
Standard Packaging Qty 25 Piece
