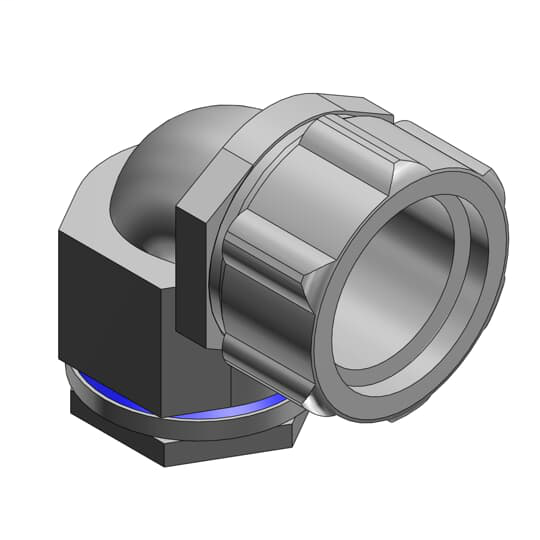

Thomas & Betts 5374 90 Degree Liquidtight Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9,618.24/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 5374
North Coast Part # 14822

Specifications

Ordering

  • EAN: 5414363075912
  • Customs Tariff Number: 8547900010

Dimensions

  • Product Net Weight: .598 lb271.202 g

Container Information

  • Package Level 1 Units: 5 piece
  • Package Level 1 Width: 3.3 in84 mm
  • Package Level 1 Height: 4.9 in124 mm
  • Package Level 1 Depth / Length: 6.3 in160 mm
  • Package Level 2 Units: 25 piece
  • Package Level 2 Width: 6.2 in157 mm
  • Package Level 2 Height: 3.5 in89 mm
  • Package Level 2 Depth / Length: 24.2 in615 mm

Additional Information

  • Brand / Label: T&B
  • Material: Malleable Iron
  • Number of Batteries: 0
  • Product Name: T&B LIQUIDTIGHT FITTINGS
  • Product Type: Chase Connectors-90 degree
  • Size: 1 Inch
  • Standards: UL E23018, CSA
  • Surface Finishing: Electro Zinc Plating
  • UPC: 786210053745

Classifications

  • ETIM 6: EC001180 - Screw connection for protective metallic hose
  • ETIM 7: EC001180 - Screw connection for protective metallic hose
  • UNSPSC: 39121420
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4585 >> Liquid tight connectors

Overview

UPC 78621005374
Item Long Description 1 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
GTiN 05414363075912
Finish Electro Zinc-Plated
Size 1 in
Type 90, 1-Piece, Insulated
Material Malleable Iron, Steel
Family Brand Name Thomas & Betts
Standard CSA,UL E23018
Diameter 32 mm Nominal x 33.3 mm ID
Trade Size 1 Inch
TC Connection Threaded
