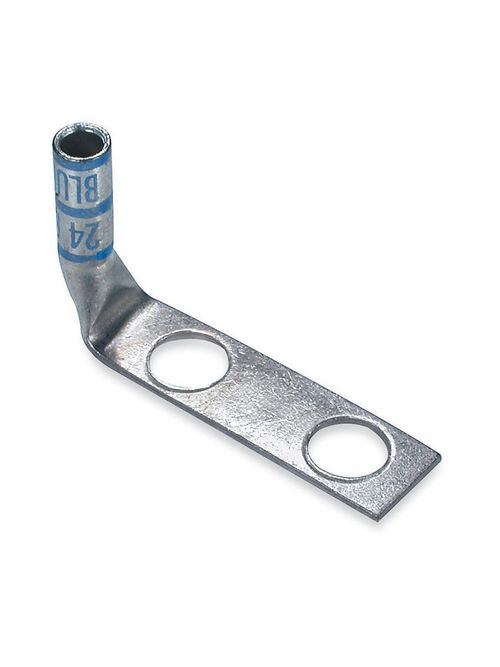

Color-Keyed 54852BEUB 2-Hole 90 Degree Blind End Long Barrel Lug
Product image thumbnail 0
Product image thumbnail 1
$970.62/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 54852BEUB
North Coast Part # 601148

Specifications

Ordering

  • EAN: 5414363144274
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .003 lb1.361 g

Container Information

  • Package Level 1 Units: 50 piece
  • Package Level 1 Width: 3 in76 mm
  • Package Level 1 Height: 3 in76 mm
  • Package Level 1 Depth / Length: 3.5 in89 mm
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 7.5 in191 mm
  • Package Level 2 Height: 3.5 in89 mm
  • Package Level 2 Depth / Length: 16.5 in419 mm

Additional Information

  • Brand / Label: Color-Keyed
  • Cable Size: 6 AWG
  • Color: Blue
  • Insulation Material: None
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Long Barrel 90 Degree Bend
  • Standards: UL E9809
  • Stud Size: 1/4 in
  • UPC: 786210591636
  • Voltage Rating: 35 kV

Classifications

  • ETIM 6: EC001051 - Tube cable lug for copper conductors
  • ETIM 7: EC001051 - Tube cable lug for copper conductors
  • UNSPSC: 39121405
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4532 >> Cable or wire lug

Overview

UPC 78621059163
GTiN 05414363144274
Finish Tin Plated
Color Blue
Type 90 Bend
Barrel Type Long, 90
Material Copper
Stud Size 1/4 in
Conductor Size 6 AWG
Number of Holes 2 Hole
Cable Size 6 AWG
Family Brand Name Color-Keyed
Die Code 24
Sub Brand Color-Keyed
Voltage 35 kV
Standard UL E9809
Insulated? No
