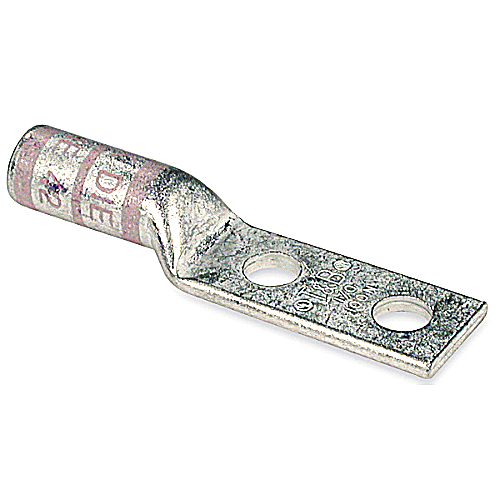

Thomas & Betts 54860BE Copper Long Barrel Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$3,484.21/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 54860BE
North Coast Part # 218795

General

  • Peep Hole: N
  • Die Code: 42
  • Wire Size: 1/0 AWG
  • Material: Copper
  • Tongue Angle: Straight
  • Barrel Shape: Standard
  • Die Color: Pink
  • Finish: Tin Plated
  • Marking: Standard
  • Tongue Width: Standard
  • Stud Size: 5/16
  • Hole Shape: Round
  • Barrel Length: Long
  • Number of Studs: 2
  • Bolt Hole Spacing: 7/8

Dimension Information

  • A (inches): 2.969
  • B (inches): 1.625
  • G (inches): 0.875
  • C (inches): .75
  • D (inches): .125
  • F (inches): .375
  • E (inches): .531

Tooling

Packaging

  • Package Length: 12.5
  • Outer Package: 100
  • Package Height: 3.9
  • T&B Sold in UOM: Each
  • Package Width: 6.3
  • Inner Package: 10
  • T&B Weight Per UOM: 9.06 lbs. per 100
  • Order Multiple: 10

Application Support

Notes

  • Dimensions given for reference only. Dimensions may vary up to .030.

Certifications

Documents

Install

Overview

UPC 78621089801
Item Long Description Copper Two-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 1/0 AWG, 5/16 Inch Bolt Size, 7/8 Inch Hole Spacing, Tin Plated, Die Code 42, Die Color Code Pink
GTiN 05415022247381
Finish Tin Plated
Color Pink
Type Long Barrel
Barrel Type Long, Straight
Material Copper
Stud Size 5/16 in
Conductor Size 1/0 AWG
Number of Holes 2 Hole
Wire Size 0 AWG
Cable Size 1/0 AWG
Number of Studs 2
Tongue Angle Straight
Tongue Width Standard
Shape Round
Family Brand Name Color-Keyed
Insulated? No
Barrel Length Long
Die Code 42
Barrel Shape Standard
Sub Brand Color-Keyed
Voltage 35 kV
