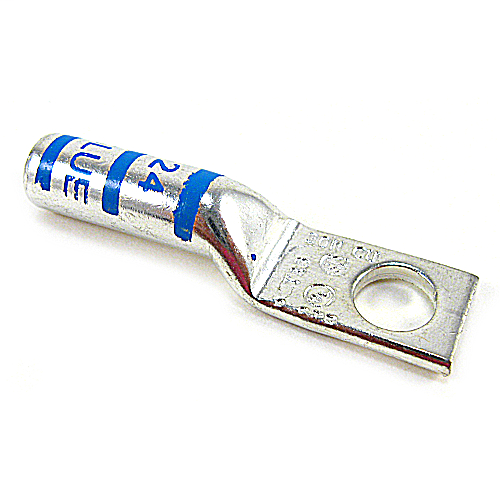

Color-Keyed 54905BE 1-Hole Long Barral 1/4 Inch Hole #6 Lug

General

• Tongue Angle: Straight
• Barrel Length: Long
• Wire Size: #6 AWG
• Number of Studs: 1
• Peep Hole: N
• Die Color: Blue
• Finish: Tin Plated
• Barrel Shape: Standard
• Hole Shape: Round
• Die Code: 24
• Stud Size: 1/4
• Marking: Standard
• Material: Copper
• Tongue Width: Standard

Dimension Information

• D (inches): .078
• B (inches): .641
• C (inches): .422
• A (inches): 1.656
• F (inches): .25
• E (inches): .297

Specifications

• Voltage Rating: 600V to 35KV

Tooling

Packaging

• T&B Weight Per UOM: 1.69 lbs. per 100
• Package Width: 6
• Package Height: 3.4
• Outer Package: 500
• Package Length: 12.2
• Inner Package: 50
• T&B Sold in UOM: Each

Application Support

Notes

• Dimensions given for reference only. Dimensions may vary up to .030.
