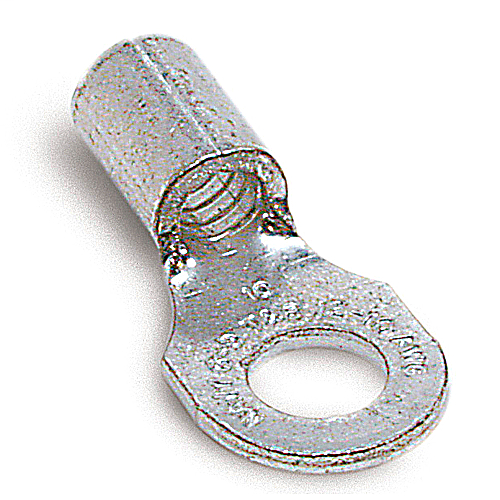

Thomas & Betts A18-10 22 to 16 AWG #10 Stud Metallic Electrotinned Copper Non-Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$61.98/c (100 ea)
In Stock | 600 available at 1 location
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # A18-10
North Coast Part # 69396

Features

  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

General

  • Wire Range: 22-16
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Color: Metallic
  • Stud Size: #10
  • Insulation Type: Non-Insulated
  • Terminal Series: A

Dimension Information

  • Stock Thickness: .03
  • M (inches): .59
  • C (inches): .27
  • B (inches): .31
  • A (inches): .75

Specifications

  • Temperature Rating: 150°C
  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4002

Packaging

  • Package Type: Standard
  • Package Height: 8.8
  • Outer Package: 500
  • Order Multiple: 100
  • T&B Sold in UOM: Each
  • Alternate Package Qty: A87
  • Package Length: 15.1
  • Package Width: 9.5
  • Inner Package: 100
  • T&B Weight Per UOM: 1.88 lbs. per 1000

Application Support

Certifications


  • UL
  • RoHS Compliance: Yes
  • CSA

Categories

Overview

UPC 78621080302
Item Long Description Sta-Kon Non-Insulated Ring Terminal AWG 22-19, stud size #10
GTiN 05414363077206
Finish Electro Tin-Plated
Width 1.63 in
Color Metallic
Voltage 600 Volt
Type Short Sleeve
Thickness .03 in
Insulation Type Non-Insulated
Material Copper
Stud Size M10
Terminal Type A
Height 3 in
Wire Size 22-16 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Conductor Size 22-16 AWG
Sub Brand Sta-Kon
