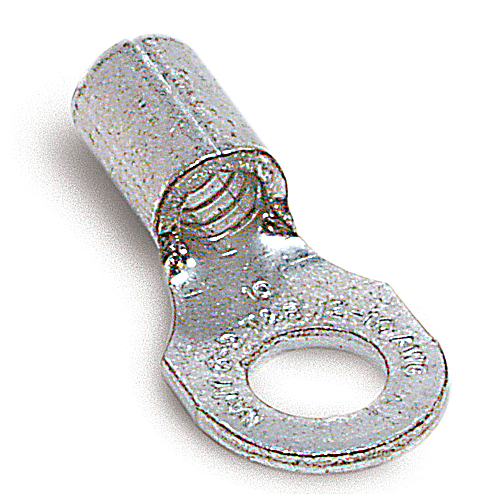

Thomas & Betts A18-14 22 to 16 AWG 1/4 Inch Stud Metallic Electrotinned Copper Non-Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$82.72/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # A18-14
North Coast Part # 69451

Features

  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

General

  • Wire Range: 22-16
  • Stud Size: 1/4
  • Terminal Series: A
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Color: Metallic
  • Insulation Type: Non-Insulated

Dimension Information

  • B (inches): .50
  • M (inches): .67
  • A (inches): .92
  • Stock Thickness: .03
  • C (inches): .37

Specifications

  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V
  • Temperature Rating: 150°C

Tooling

  • Recommended Tool: ERG4002
  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002

Packaging

  • Order Multiple: 100
  • Package Type: Standard
  • Alternate Package Qty: A71
  • Package Width: 8.75
  • T&B Sold in UOM: Each
  • Package Height: 7
  • Inner Package: 100
  • Package Length: 10.75
  • Outer Package: 500
  • T&B Weight Per UOM: 2.5 lbs. per 1000

Application Support

Certifications

  • CSA
  • UL
  • RoHS Compliance: Yes

Overview

UPC 78621080304
Item Long Description Non-Insulated Ring Terminal, Length .92 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Copper, Tin Plated
GTiN 05414363147107
Finish Electro Tin-Plated
Width 1.63 in
Color Metallic
Voltage 600 Volt
Type Non-Insulated Ring Terminal
Thickness .03 in
Insulation Type Non-Insulated
Material Copper
Stud Size 1/4 in
Terminal Type A
Height 3 in
Wire Size 22-16 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
