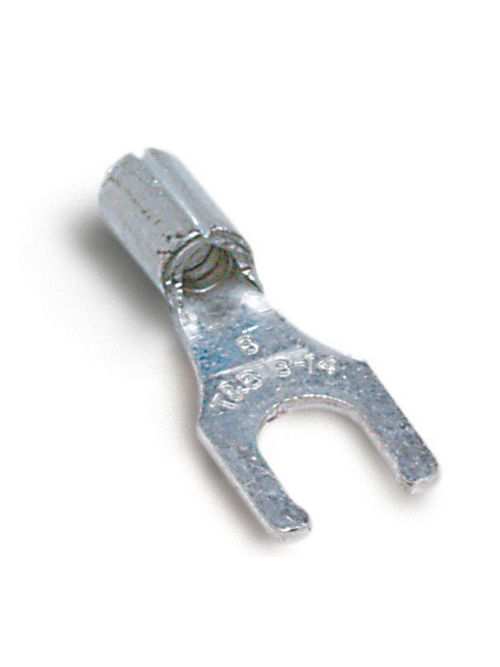

Thomas & Betts A18-8FL #8 Bolt Hole 22-16 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$72.37/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # A18-8FL
North Coast Part # 151378

Features

  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.

General

  • Stud Size: #8
  • Material: Copper
  • Color: Metallic
  • Finish: Electro Tin-Plated
  • Insulation Type: Non-Insulated
  • Wire Range: 22-16
  • Terminal Series: A

Dimension Information

  • M (inches): .59
  • C (inches): .27
  • A (inches): .75
  • Stock Thickness: .03
  • B (inches): .29

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 150°C
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4002

Packaging

  • Package Type: Standard
  • T&B Sold in UOM: Each
  • Inner Package: 100
  • Package Width: 2.9
  • Alternate Package Qty: A224
  • Outer Package: 500
  • Order Multiple: 100
  • Package Length: 5.2
  • Package Height: 2.2
  • T&B Weight Per UOM: 1.88 lbs. per 1000

Application Support

Certifications

  • CSA
  • RoHS Compliance: Yes
  • UL

Overview

UPC 78621080665
GTiN 00786210806655
Finish Electro Tin-Plated
Width 1.63 in
Color Metallic
Voltage 600 Volt
Type Locking, Short Sleeve
Thickness .03 in
Insulation Type Non-Insulated
Material Copper
Stud Size #8
Terminal Type A
Conductor Size 22 - 16 AWG
Height 2.2 in
Wire Size 22-16 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Sub Brand Sta-Kon
