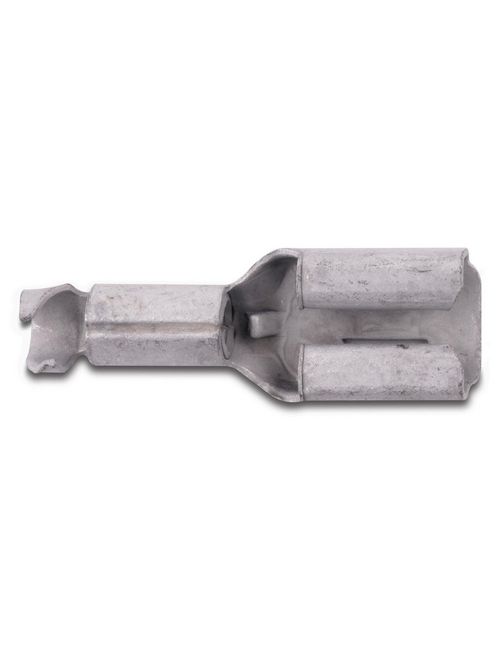

Thomas & Betts B14-250F 16 to 14 AWG Metallic Electrotinned Brass Non-Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$94.39/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # B14-250F
North Coast Part # 219227

Features

  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

General

  • Finish: Electro Tin-Plated
  • Disconnect Type: Female - 250 Series
  • Terminal Series: B
  • Color: Metallic
  • Wire Range: 16-14
  • Insulation Type: Non-Insulated
  • Material: Brass
  • Tab Size: .250 x .032

Dimension Information

  • A (inches): .87
  • B (inches): .31
  • Stock Thickness: .03

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 150°C
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT110M
  • Recommended Tool: WT110M

Packaging

  • Inner Package: 100
  • Outer Package: 500
  • Package Type: Standard
  • Package Height: 7.25
  • Alternate Package Qty: B250G
  • Order Multiple: 100
  • T&B Sold in UOM: Each
  • Package Length: 10.25
  • Package Width: 9
  • T&B Weight Per UOM: 0.31 lbs. per 100

Application Support

Certifications


  • UL
  • CSA
  • RoHS Compliance: Yes (exemption 06)

Overview

UPC 78621080336
GTiN 05414363935193
Finish Electro-Tin Plated
Color Metallic
Voltage 600 Volt
Type Straight
Material Brass
Conductor Size 16 - 14 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Insulated? No
Sub Brand Sta-Kon
