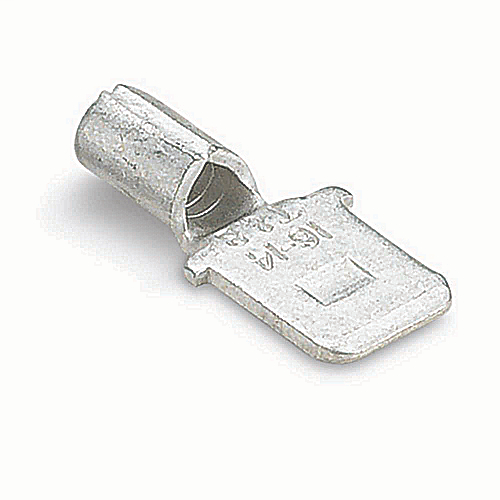

Thomas & Betts B14-251T 16 to 14 AWG Electrotinned Brass Non-Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$111.77/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # B14-251T
North Coast Part # 219369

General

  • Style: Male - 250 Series
  • Material: Brass
  • Color: Metallic
  • Tab Size: .250 x .032
  • Finish: Electro Tin-Plated
  • Wire Range: 16-14
  • Insulation Type: Non-Insulated
  • Terminal Series: B

Dimension Information

  • Stock Thickness: .03
  • A (inches): .73

Specifications

  • Temperature Rating: 150°C
  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V

Tooling

  • Recommended Tool: ERG4002

Packaging

  • Order Multiple: 100
  • T&B Weight Per UOM: 2.5 lbs. per 1000
  • Outer Package: 500
  • Alternate Package Qty: B251
  • Package Width: 9.4
  • Package Length: 14.9
  • Package Type: Standard
  • T&B Sold in UOM: Each
  • Inner Package: 100
  • Package Height: 9

Application Support

Certifications

  • CSA
  • UL
  • RoHS Compliance: Yes

Categories

Overview

UPC 78621087415
Item Long Description Non-Insulated Male Tab, Length .68 Inches, Tab Size .250x.032, Wire Range #16-#14 AWG, Copper, Tin Plated
GTiN 05414363935186
Finish Tin Plated
Color Metallic
Voltage 600 Volt
Type Non-Insulated
Material Brass
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Insulated? No
Length 0.68 in
Conductor Size 16-14 AWG
Tab Size 1/4 in x 0.032 in
Sub Brand Sta-Kon
