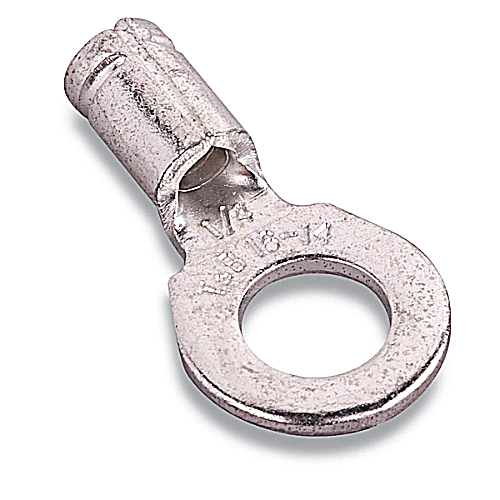

TB BC14-10 NON-INS RING TERM, HD 16
Product image thumbnail 0
Product image thumbnail 1
$107.16/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # BC14-10
North Coast Part # 16914

Features

  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

General

  • Insulation Type: Non-Insulated
  • Color: Metallic
  • Stud Size: #10
  • Material: Copper
  • Wire Range: heavy duty 16-14
  • Finish: Electro Tin-Plated
  • Terminal Series: BC

Dimension Information

  • C (inches): .29
  • A (inches): .87
  • Stock Thickness: .05
  • B (inches): .39
  • M (inches): .68

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 150°C
  • Flammability Rating: UL 94 V-0

Tooling

  • Recommended Tool: ERG4002, ERG4005
  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002

Packaging

  • Inner Package: 50
  • T&B Sold in UOM: Each
  • Order Multiple: 50
  • T&B Weight Per UOM: 0.56 lbs. per 100
  • Package Width: 9.4
  • Package Type: Standard
  • Alternate Package Qty: BC87
  • Outer Package: 250
  • Package Length: 15
  • Package Height: 8.7

Application Support

Certifications


  • RoHS Compliance: Yes
  • UL
  • CSA

Overview

UPC 78621080129
GTiN 00786210801292
Finish Electro Tin-Plated
Width 1.1 in
Color Metallic
Voltage 600 Volt
Type Heavy Duty, Non-Insulated
Thickness .05 in
Insulation Type Non-Insulated
Material Copper
Stud Size #10
Terminal Type BC
Conductor Size 16-14 AWG
Height 2.9 in
Wire Size #16 - #14 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Sub Brand Sta-Kon
