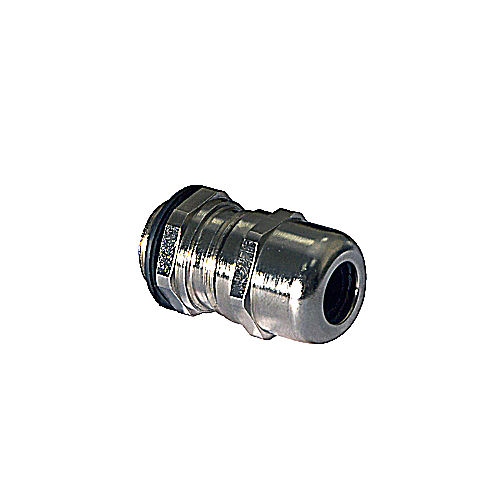

TB BEM-2001 BRASS EMC CG 2IN - 34.0
$299.37/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # BEM-2001
North Coast Part # 1829408

Features

  • Low profile compact cable glands
  • Wide cable clamping range
  • Good corrosion resistance
  • Extended radial contact with the shielding for improved EMI protection

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121431 Cable gland connector
  • IGCC: 4601 Cable gland connector
  • Brand Name: T&B
  • Type: EMC Cable Gland
  • Application: General purpose, Panel building, Light fixture and housings
  • Standard: cULus, RoHS, WEEE, LVD
  • Size: 2 Inch NPT
  • Conductor Range: 34 to 44 Millimeters
  • Material: Brass
  • Finish: Nickel Plated
  • Color: Metallic
  • NEMA Rating: NEMA 4
  • Temperature Rating: -20 to +100 Degrees C

European Specifications (ETIM)

  • ETIM: EC000441 Cable screw gland
  • Thread type: NPT
  • Nominal thread size inch/gas pipe thread: 2 inch
  • Thread length: 22mm
  • Suitable for cable diameter: 34 - 44mm
  • Material: Metal
  • Material quality: Brass
  • Surface protection: Nickel-plated
  • Degree of protection (IP): IP68
  • Colour: Natural colour
  • Model: Straight
  • Operating temperature: -20-+100°C
  • EMC-version: Y

Packaging

  • Inner Quantity: 2
  • Inner Dimensions (inches): 7.09x3.54x3.54
  • Outer Quantity: 4
  • Outer Dimensions (inches): 3.94x15.75x11.02
  • Weight Uom: 0.01 lbs. Each

Overview

UPC 78621013834
Finish Nickel
Color Metallic
Operating Temperature -20 To 100 C
Material Brass
Thread Length 22 mm
Temperature Rating -20 to +100 C
Family Brand Name Thomas & Betts
NEMA 4
Carton Qty 2
Box Quantity 4
IP Rating IP68
Thread Type NPT
GTiN 00786210138343
Size 2 Inch NPT
Type EMC Cable Gland
Applications General purpose, Panel building, Light fixture and housings
