TB BFH-48-0 CONDUIT 1PC SUPPORT PA6
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$744.93/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # BFH-48-0
North Coast Part # 760828

Application

  • Designed for fixation of PMAFLEX conduits.
  • Machine building and installation applications.

General

  • Suitable for Use With: PMAFLEX, PMA Smart Line Conduits
  • Color: Black
  • Material: Polyamide 6
  • Fixing Screw: 1 x M6

Dimension Information

  • Depth (mm): 20.0
  • Width (mm): 67.5
  • Height (mm): 68.0

Technical Information

  • Temperature Range-Continuous (Celsius): -40° C to +105° C
  • Temperature-Short-Term (Celsius): +160° C

Packaging

  • Inner Package: 50
  • Package Width: 11.811
  • Package Height: 7.874
  • Package Length: 15.748
  • Outer Package: 100
  • Order Multiple: 50
  • T&B Sold in UOM: Each
  • T&B Weight Per UOM: 0.06 lbs. Each

Application Support

Certifications

  • RoHS Compliance: Yes

Characteristics

  • One-piece construction
  • Quick mounting due to single hole fixing
  • Suitable for overhead installation due to safety lid
  • Very good chemical properties
  • Very high impact resistance
  • High retention forces
  • Optimal axial strain relief due to integrated rib
  • Fits both conduit profiles, fine (T) and coarse (G)
  • Self-extinguishing, free from halogens and cadmium

Overview

UPC 78620994539

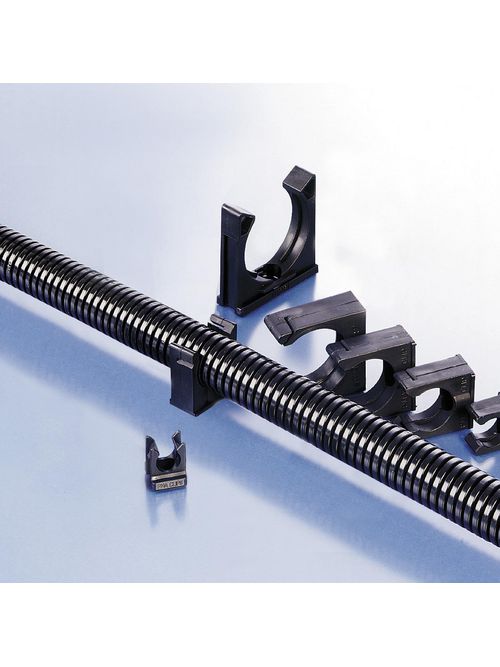

Item Long Description PMACLIP One-Piece Black System Support with Safety Lid, Material - Polyamide 6, Fits to Conduit Size NW - 48, Metric - 50
GTiN 00786209945396
Finish Black
Width 67.5 mm
Color Black
Type 1 Hole
Thickness 20 mm
Material Polyamide 6
Number of Holes 1 Hole
Applications Machine Building and Installation Applications
Depth 20 mm
Height 68 mm
Cable Size NW48
Family Brand Name PMA
Blade Dimensions 20 mm T
Used With One Piece NW-48 Conduit System
Sub Brand PMA
