TB BVYR-100707 Y-CONN 1PC 2XNW7,NW1
$1,243.42/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # BVYR-100707
North Coast Part # 823484

Features

  • Self-extinguishing, free of halogen and cadmium and are extremely shock resistant
  • Very high impact resistance
  • Vibration-proof connection to PMAFLEX conduits
  • Easy mounting, simple conduit push-in instructions
  • High conduit pull-out strength
  • Can be easily re-opened with a screwdriver
  • Very good chemical properties
  • Fits both conduit profiles - Fine (T) and coarse (G)

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121311 Electrical fittings
  • IGCC: 4441 Electrical fittings
  • Brand Name: PMA

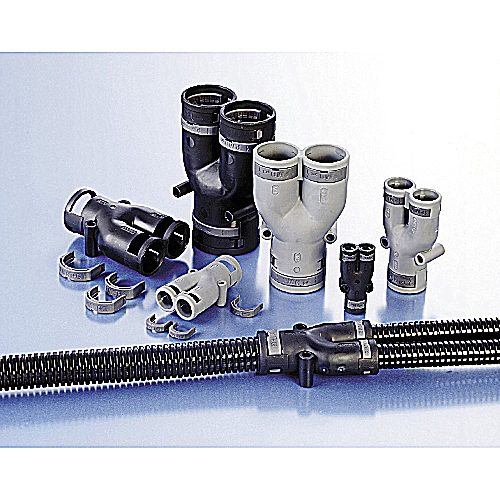

  • Type: Y-Connectors
  • Application: For Use in a Wide Range of Applications Where it is Important that the Cable Protection System Offers a High Grade of Sealing and Safety
  • Size: NW10/NW07/NW07
  • Material: Polyamide 6
  • Insulation Class: IP68
  • Color: Black

European Specifications (ETIM)

  • ETIM: EC001172 Coupler for corrugated plastic hoses
  • Material: Plastic
  • Material quality: Polyamide (PA)
  • Operating temperature: -40 - +105°C
  • Degree of protection (IP): IP68
  • Model: Y-piece
  • Nominal size: 10-12mm
  • Colour: Black

Packaging

  • Inner Quantity: 20
  • Outer Quantity: 200
  • Outer Dimensions (inches): 15.748x11.811x7.874
  • Weight Uom: 0.03 lbs. Each

Overview

UPC 78620995420
GTiN 00786209954206
Family Brand Name Thomas & Betts
Size NW10/NW07/NW07
Color Black
Type Y-Connectors
Material Polyamide
Applications For Use in a Wide Range of Applications Where it is Important that the Cable Protection System Offers a High Grade of Sealing and Safety
Operating Temperature -40 To 105 C
Carton Qty 20
Box Quantity 200
IP Rating IP68
