BB AL-250-N ALUM COMP LUG 250MCM 2
Product image thumbnail 0
Product image thumbnail 1
$15.24/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # AL-250-N
North Coast Part # 1097511

Specifications

Ordering

  • EAN: 0783786044344
  • Customs Tariff Number: 8535908020

Dimensions

  • Product Net Weight: .22 lb99.773 g

Container Information

  • Package Level 2 Units: 25 piece
  • Package Level 2 Width: 6 in152 mm
  • Package Level 2 Height: 6.5 in165 mm
  • Package Level 2 Depth / Length: 7.5 in191 mm

Additional Information

  • Number of Batteries: 0
  • Product Name: ELECTRICAL CONNECTOR,>1000V
  • UPC: 783786044344

Classifications

  • UNSPSC: 39121409
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4543 >> Wire connectors

Overview

UPC 78378604434

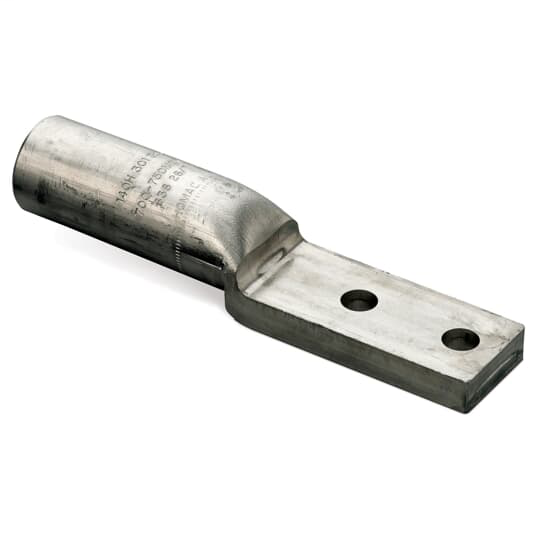

Item Long Description Aluminum Two-Hole NEMA Lugs - straight lug, concentric 250 kcmil AL-CU and 4/0 Stranded and compact 250-300 kcmil and ACSR 4/0 (6/1), installing dies TX, 76, 249, 840, 11A. Length 6 inch. Pad 1-15/64 inch wide x 3-11/32 inch long x 19/64 inch thick. (2) 9/16 inch Diameter Holes on 1-3/4 inch Spacing. 1-15/16 inch Barrel with 29/32 inch Outside Diameter. Oxide Inhibitor. Red Cap.
GTiN 00783786044344
Size Length 6 inches X 1-15/64 inch wide
Type Compression Lug Two Hole
Material Aluminum
Applications General purpose lugs for Aluminum and Copper terminations.
Family Brand Name Thomas & Betts
Wire Size 250 kcmil ; 4/0 AWG
TC Connection Compression
