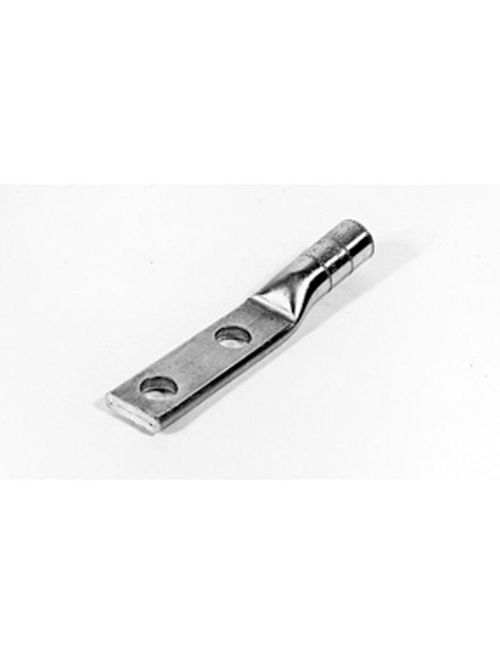

BLKBRN AL250-NTN-/-SA4/0NTN LUG
Product image thumbnail 0
Product image thumbnail 1
$13.71/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # AL250-NTN-/-SA4/0NTN
North Coast Part # 1097513

Features

  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121448 Wire or cable compression connector
  • IGCC: 4668 Wire or cable compression connector
  • Brand Name: Blackburn
  • Type: Compression Lug
  • Special Features: Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
  • Application: General Purpose Lugs for Aluminum and Copper Terminations
  • Standard: ANSI C119.4
  • Size: Length 6 inches, Barrel 1.936 inches, Pad 1.237 inch wide x 3.344 inch long x .297 inch thick
  • Conductor Range: 250 kmcil
  • Material: Aluminum
  • Finish: Tin Plated
  • Insulation: No
  • Temperature Rating: 90 Degrees Celsius
  • Bolt Size: 1/2 inch

Packaging

  • Outer Quantity: 25
  • Outer Dimensions (inches): 7.5x6.25x7
  • Weight Uom: 21.5 lbs. per 100

Overview

UPC 78378669343
GTiN 00783786693436
Finish Tin Plated
Material Aluminum
Temperature Rating 90 C
Family Brand Name Blackburn
Insulated? No
Box Quantity 25
Size Length 6 inches, Barrel 1.936 inches, Pad 1.237 inch wide x 3.344 inch long x .297 inch thick
Type Compression Lug Two Hole
Applications General Purpose Lugs for Aluminum and Copper Terminations
Wire Size 250 kcmil
Bolt Size 1/2 in
TC Connection Compression
