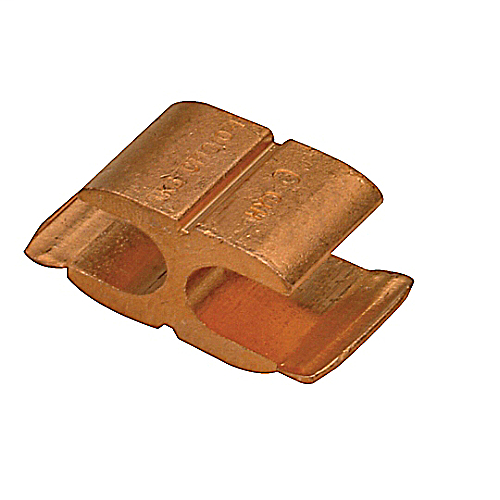

Blackburn CF22-1 Compression Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 9 to 15 Days
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # CF22-1
North Coast Part # 63527


North American Specifications (UNSPSC)

  • UNSPSC: 39121448 Wire or cable compression connector
  • IGCC: 4668 Wire or cable compression connector
  • Brand Name: Blackburn
  • Type: H-Type Compression Connector
  • Special Features: Efficient Design Requires Less Crimping Force. Full Length Tab makes Installation Easy. Installs with Standard Compression Tools and Dies. RUS Accepted.
  • Size: 13/16 inch Length
  • Conductor Range: Main/Tap .204-.258 inch
  • Material: Electrolytic Copper
  • Finish: Bare
  • Insulation: None
  • Conductor Type: Crimp
  • Conductor Range (Main/Primary): .368-.419 inch
  • Bolt Size: No Bolt
  • Mounting Hole Spacing: No Bolt


  • Inner Quantity: 100
  • Inner Dimensions (inches): 4.75x5.25x3
  • Outer Quantity: 600
  • Outer Dimensions (inches): 11.6x11.2x8
  • Weight Uom: 6.31 lbs. per 100


GTiN 00783786092215
Length 13/16 Inch
Finish Bare
Size 13/16 inch Length
Type H-Type Compression Tap Connector
Material Copper
Bolt Size No Bolt
Family Brand Name Blackburn
Conductor Type Crimp
Used With Solid Core, Stranded Conductors
Sub Brand Blackburn
Product UPC 78378609221
Wire Size 6-2 SOL CU AWG ; 6 STR CU AWG
Insulated? No
Box Quantity 600
TC Connection Compression
