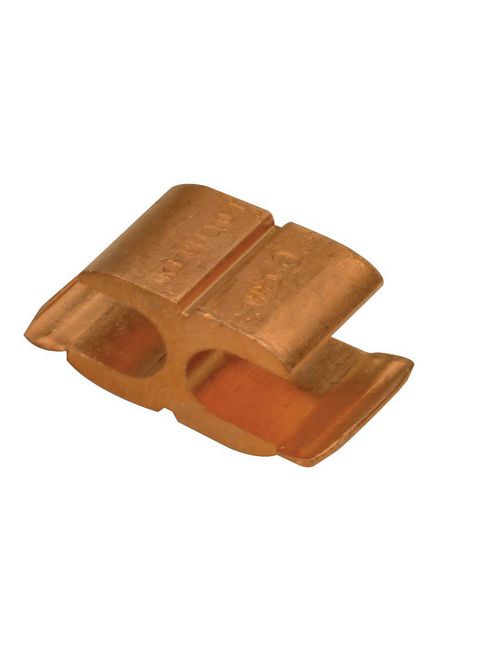

Blackburn CF44-1 Compression Tap Connector
Product image thumbnail 0
Product image thumbnail 1
$4.03/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # CF44-1
North Coast Part # 65246

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121448 Wire or cable compression connector
  • IGCC: 4668 Wire or cable compression connector
  • Brand Name: Blackburn
  • Type: H-Type Compression Connector
  • Special Features: Efficient Design Requires Less Crimping Force. Full Length Tab makes Installation Easy. Installs with Standard Compression Tools and Dies. RUS Accepted.
  • Size: 13/16 inch Length
  • Conductor Range: Main .204-.162 inch, Tap .128-.204 inch
  • Material: Electrolytic Copper
  • Finish: Bare
  • Insulation: None
  • Conductor Type: Crimp
  • Conductor Range (Main/Primary): .162-.204 inch
  • Bolt Size: No Bolt
  • Mounting Hole Spacing: No Bolt

Packaging

  • Inner Quantity: 100
  • Inner Dimensions (inches): 4.75x5.25x3
  • Outer Quantity: 600
  • Outer Dimensions (inches): 11.5x11x5.7
  • Weight Uom: 5 lbs. per 100

Overview

UPC 78378607619
GTiN 05414363149330
Length 13/16 in
Finish Bare
Size 13/16 inch Length
Type H-Type Compression Tap Connector
Material Electrolytic Copper
Bolt Size No Bolt
Family Brand Name Blackburn
Conductor Type Crimp
Used With Solid Core, Stranded Conductors
Sub Brand Blackburn
Wire Size Main .204-.162 in ; Tap .128-.204 in
TC Connection Compression
Insulated? No
Carton Qty 100
Box Quantity 600
