Blackburn CTL2-14 Compression Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$401.13/c (100 ea)
In Stock | 17 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # CTL2-14
North Coast Part # 159981

Specifications

Ordering

  • EAN: 0783786131761
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .031 lb14.059 g

Container Information

  • Package Level 1 Units: 25 piece
  • Package Level 1 Width: 2.8 in71 mm
  • Package Level 1 Height: 2.3 in58 mm
  • Package Level 1 Depth / Length: 3.3 in84 mm
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 4.2 in107 mm
  • Package Level 2 Height: 6.5 in165 mm
  • Package Level 2 Depth / Length: 12.5 in318 mm

Additional Information

  • Brand / Label: Blackburn
  • Cable Size: 2 AWG
  • Color: Brown
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Standard Barrel
  • Special Functions: Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Standards: UL E9809
  • Stud Size: 1/4 in
  • UPC: 783786131761

Classifications

  • ETIM 6: EC001051 - Tube cable lug for copper conductors
  • ETIM 7: EC001051 - Tube cable lug for copper conductors
  • UNSPSC: 39121405
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4532 >> Cable or wire lug

Categories

Overview

UPC 78378613176

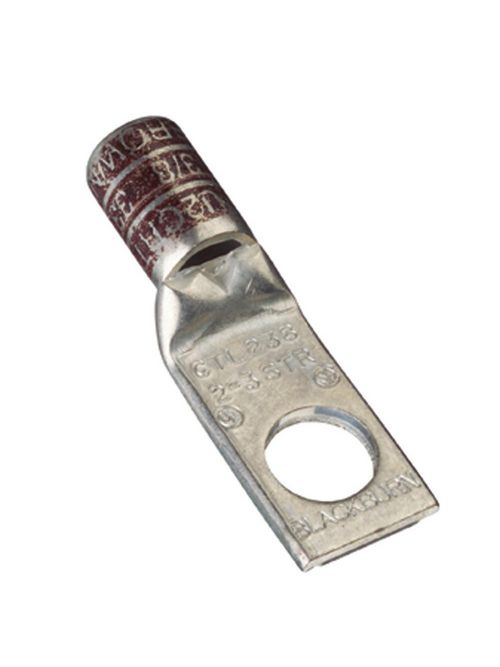

Item Long Description Copper One-Hole Lug, Short Barrel, Max 35kV, 2 Str. Wire, 1/4 Bolt Size, Tin Plated, Die Color Code Brown
GTiN 00783786131761
Finish Tin Plated
Color Brown
Type Non-Insulated
Barrel Type Short, Straight
Material Copper
Stud Size 1/4 in
Conductor Size 2 AWG Stranded
Number of Holes 1 Hole
Cable Size 2 AWG
Family Brand Name Blackburn
Sub Brand Blackburn
Standard UL E9809
