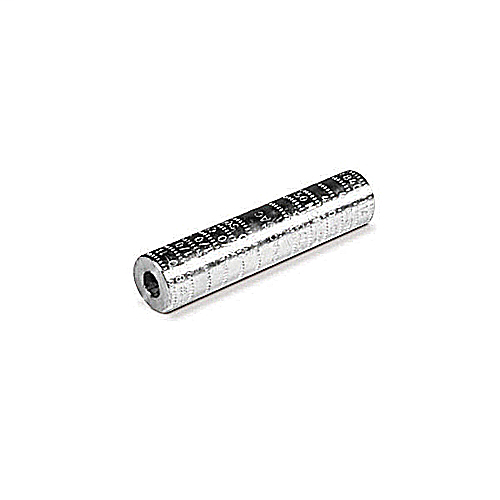

BB SAC-350-R-1/0 AL STR SPLICE DIE
$20.16/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # SAC-350-R-1/0
North Coast Part # 1827681

Features

  • Install with Six Common Dies to Reduce Your Die Inventory.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • Marked with Conductor Sizes and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121449 Wire or cable compression splice
  • IGCC: 4669 Wire or cable compression splice
  • Brand Name: Blackburn
  • Type: Aluminum Straight Reducing Splices
  • Special Features: Install with six common dies to reduce your die inventory. Dual-Rated for use with Aluminum and Copper Conductors. Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with Conductor Sizes and Die References for Easy Identification.
  • Application: Reducers for general URD applications.
  • Standard: ANSI C119.4
  • Size: Length 5 inches
  • Connection: Compression/Crimp
  • Conductor Range: Side A - 350 Concentric/Compressed, Side B - 1/0 Concentric/Compressed, 2/0 Compact, 2/0 Solid
  • Number Of Conductors: 2
  • Material: Aluminum
  • Finish: Bare
  • Insulation: None

Packaging

  • Outer Quantity: 25
  • Outer Dimensions (inches): 7.5x6x6.5
  • Weight Uom: 0.34 lbs. Each

Overview

UPC 78378674757
GTiN 00783786747573
Finish Bare
Size Length 5 inches
Type Aluminum Straight Reducing Splices
Material Aluminum
Number of Conductors 2
Applications Reducers for general URD applications.
Connection Type Crimp,Compression
Family Brand Name Thomas & Betts
Insulated? No
Box Quantity 25
TC Connection Compression
