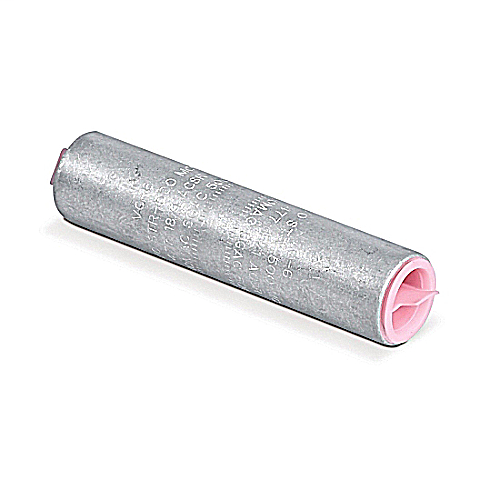

BLKBRN SGAC-3/0 3/0AWG SPLC
$4.30/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # SGAC-3/0
North Coast Part # 1169254

Features

  • Made of Aluminum for High Strength and High Conductivity.
  • Solid Center Stop Ensures Proper Cable Insertion.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
  • All Splices Marked with Conductor Sizes for Easy Identification.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121449 Wire or cable compression splice
  • IGCC: 4669 Wire or cable compression splice
  • Brand Name: Blackburn
  • Type: Aluminum Multi-Range Dieless Compression Splice
  • Special Features: Dual-rated. Use with Aluminum and Copper conductors. All splices are marked with conductor size for easy identification. Solid center stop ensures proper cable insertion. Connector Bores coated with Oxide Inhibitor and Capped to Prevent Oxidation. Made from Aluminum for high strength and high conductivity.
  • Size: 3 inches long
  • Connection: Crimp/Compression
  • Conductor Range: #8 Solid - 3/0 Stranded
  • Material: Aluminum
  • Insulation: Non-Insulated

Packaging

  • Inner Quantity: 50
  • Outer Quantity: 200
  • Outer Dimensions (inches): 14.25x10x8
  • Weight Uom: 10.25 lbs. per 100

Overview

UPC 78378675157
GTiN 00783786751570
Material Aluminum
Connection Type Crimp,Compression
Family Brand Name Blackburn
Insulated? No
Carton Qty 50
Box Quantity 200
Size 3 inches long
Type Compression Splice
TC Connection Compression
