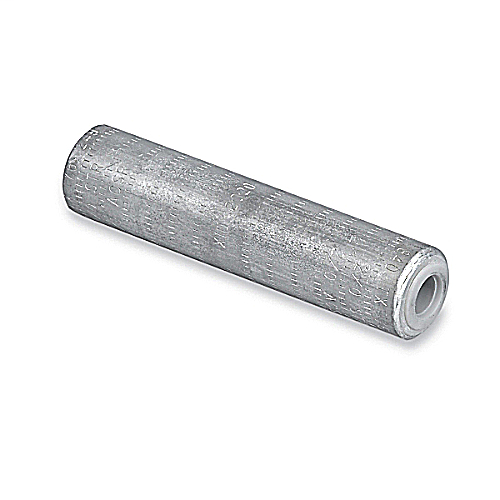

BLKBRN X-1-U-33640 400KCMIL SPLC
$6.99/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Blackburn
Mfg Catalog # X-1-U-33640
North Coast Part # 763948

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121449 Wire or cable compression splice
  • IGCC: 4669 Wire or cable compression splice
  • Brand Name: Blackburn
  • Type: Uninsulated Aluminum Service Entrance Compression Splices
  • Special Features: Constructed from Aluminum. Provides high conductivity. Prefilled with Oxide inhibitor to prevent oxidation and keep out moisture. Solid center barriers Enable quick Positioning, Proper Distribution of Inhibitor around the wire and Current Equalization on Stranded Conductors. Splices are marked with strip lengths, die codes, and compression locations for easy identification and easy installation.
  • Application: Ideal for Large Residential and Commercial Service Drops.
  • Standard: ANSI C119.4
  • Size: 4 inches long
  • Connection: Crimp/Compression
  • Conductor Range: Side A Solid Aluminum 397.5-400. Stranded 300-350. ACSR 336.8(18/1). Side B Stranded 4/0. ACSR 4/0.
  • Number Of Conductors: 2
  • Material: Aluminum
  • Color: Brown/Pink
  • Insulation: None

Packaging

  • Outer Quantity: 100
  • Outer Dimensions (inches): 13.5x8.5x8.5
  • Weight Uom: 0.16 lbs. Each

Overview

UPC 78378675963
GTiN 00783786759637
Color Brown,Pink
Material Aluminum
Number of Conductors 2
Connection Type Compression,Crimp
Family Brand Name Thomas & Betts
Insulated? No
Box Quantity 100
