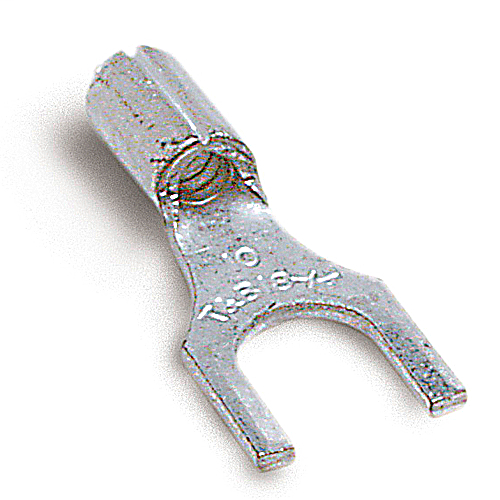

Thomas & Betts C10-10F 12 to 10 AWG #10 Stud Metallic Electrotinned Copper Non-Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$90.60/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # C10-10F
North Coast Part # 71072

Features

  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

General

  • Material: Copper
  • Color: Metallic
  • Wire Range: 12-10
  • Terminal Series: C
  • Insulation Type: Non-Insulated
  • Finish: Electro Tin-Plated
  • Stud Size: #10

Dimension Information

  • M (inches): .63
  • C (inches): .27
  • B (inches): .38
  • Stock Thickness: .04
  • A (inches): .82

Specifications

  • Temperature Rating: 150°C
  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4001

Packaging

  • Package Length: 14.9
  • T&B Sold in UOM: Each
  • T&B Weight Per UOM: 5 lbs. per 1000
  • Inner Package: 50
  • Package Height: 8.9
  • Outer Package: 250
  • Package Width: 9.4
  • Package Type: Standard
  • Order Multiple: 50
  • Alternate Package Qty: C115

Application Support

Certifications

  • CSA
  • UL
  • RoHS Compliance: Yes

Overview

UPC 78621080348
Item Long Description Non-Insulated Fork Terminal, Length .82 Inches, Width .38 Inches, Bolt Hole #10, Wire Range #12-#10 AWG, Copper, Tin Plated
GTiN 05414363148838
Finish Electro Tin-Plated
Color Metallic
Voltage 600 Volt
Type Long Sleeve
Thickness .04 in
Barrel Type Serrated
Insulation Type Non-Insulated
Material Copper
Stud Size #10
Terminal Type C
Conductor Size 12-10 AWG
Wire Size 12-10 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Sub Brand Sta-Kon
