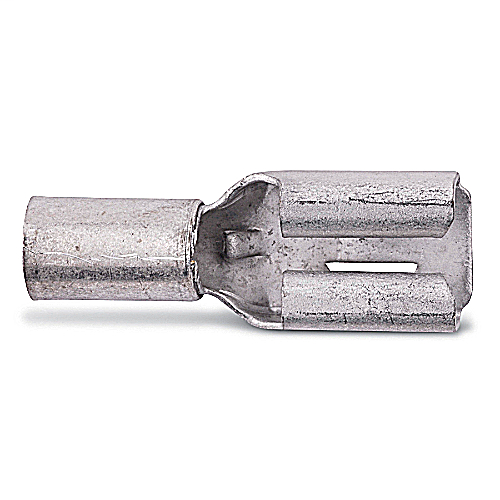

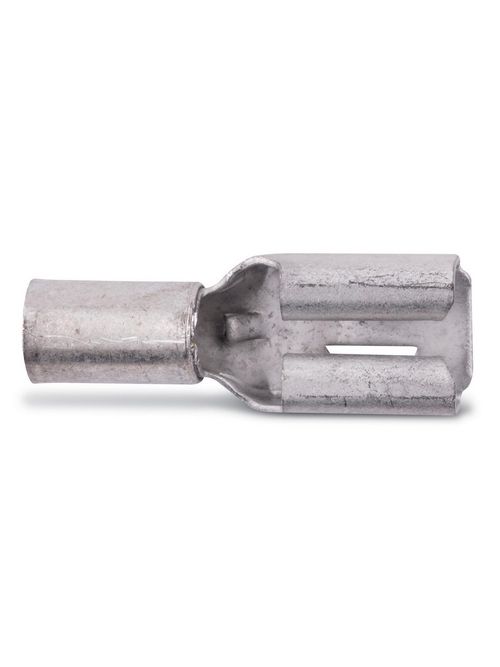

TB C10-250F NON-INS FEM .250x.032 D
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$147.24/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # C10-250F
North Coast Part # 68417

Features

  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

General

  • Tab Size: .250 x .032
  • Finish: Electro Tin-Plated
  • Terminal Series: C
  • Wire Range: 12-10
  • Insulation Type: Non-Insulated
  • Color: Metallic
  • Material: Brass
  • Disconnect Type: Female - 250 Series

Dimension Information

  • Stock Thickness: .04
  • B (inches): .31
  • A (inches): .73

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 150°C
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4002

Packaging

  • T&B Sold in UOM: Each
  • Package Length: 10.7
  • Package Width: 8.9
  • Alternate Package Qty: C250
  • Package Type: Standard
  • Package Height: 7.3
  • T&B Weight Per UOM: 4.38 lbs. per 1000
  • Order Multiple: 50
  • Inner Package: 50
  • Outer Package: 250

Application Support

Certifications

  • CSA
  • UL
  • RoHS Compliance: Yes (exemption 06)

Overview

GTiN 05414363148890
Finish Electro-Tin Plated
Color Metallic
Voltage 600 Volt
Type Straight
Barrel Type Brazed Seam, Serrated
Material Brass
Conductor Size 12-10 AWG
Tab Size 1/4 x 0.032 in
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Insulated? No
Sub Brand Sta-Kon
Product UPC 78621080352
