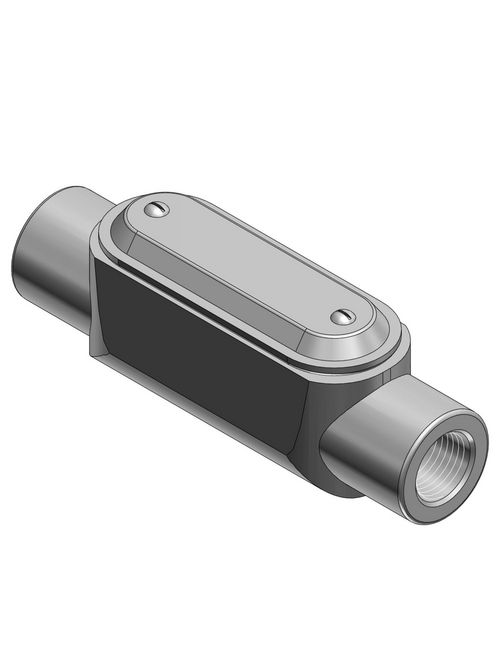

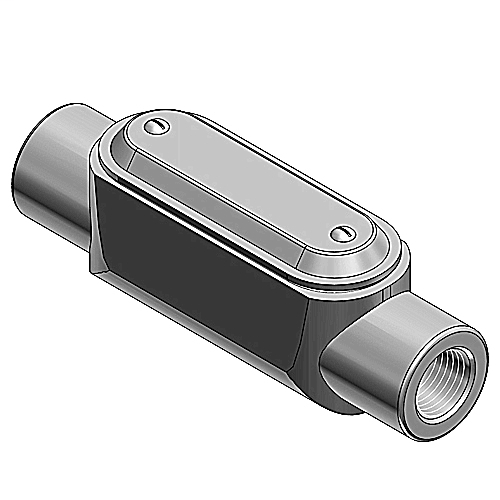

T&B C47CG-TB COND BDY&GSKT&CVR ASY
$60.90/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # C47CG-TB
North Coast Part # 819103

Features

  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
  • Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
  • Bodies are designed with a flat back, allowing more cubic inch capacity.
  • T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
  • Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39131708 Electrical conduit fitting body
  • IGCC: 5563 Electrical conduit fitting body
  • Brand Name: T&B
  • Type: Pre-Assembled Form 7 Conduit Body, Cover & Gasket
  • Special Features: BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires.
  • Application: Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors.
  • Standard: UL E2969, CSA
  • Hub Size: 1-1/4 Inch
  • Form: 7
  • Material: Malleable Iron
  • Finish: Zinc Plated with Epoxy Powder Coat

Packaging

  • Outer Quantity: 2
  • Outer Dimensions (inches): 5.25x3.75x8
  • Weight Uom: 3.13 lbs. Each

Overview

UPC 78621091682
GTiN 00786210916828
Finish Zinc-Plated With Epoxy Powder Coat
Material Iron
Family Brand Name Thomas & Betts
Box Quantity 2
Hub Size 1-1/4 in
