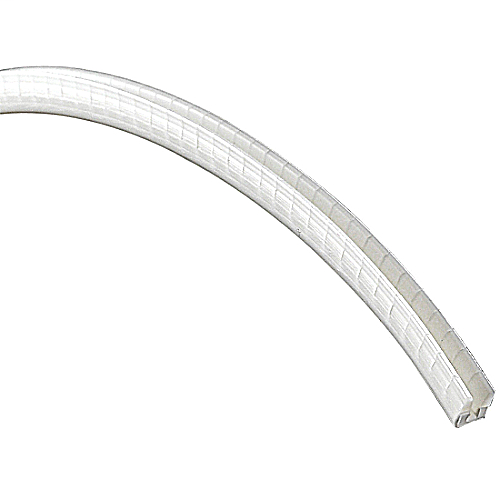

CM GRFR-125-WH-C GROMMET EXTD FLMRT
Product image thumbnail 0
Product image thumbnail 1
$103.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Catamount
Mfg Catalog # GRFR-125-WH-C
North Coast Part # 1826792

Features

  • Used to line panel edges and knockouts where the chafing of wires is a concern.
  • Available in 8 stock sizes in 100-ft. lengths for panels from .040 - .250 inches thick and in a variety of stocked materials to cover a wide range of applications.

General

  • Color: White
  • Style: Extruded
  • Material: Flame Retardant Polyethylene

Dimension Information

  • C (inches): 0.050
  • For Panel Thickness Max (inches): 0.125
  • D (inches): 0.220
  • E (inches): 0.205

Specifications

  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: SR-100

Packaging

  • T&B Weight Per UOM: 2.2 lbs. Each
  • Inner Package: 1
  • Feet per Roll: 100
  • T&B Sold in UOM: Each
  • Order Multiple: 1
  • Outer Package: 10

Certifications

  • RoHS Compliance: No

Overview

UPC 72849409393
GTiN 00728494093932
Color White
Type Grommeting
Material Flame Retardant Polyethylene
Family Brand Name Thomas & Betts
