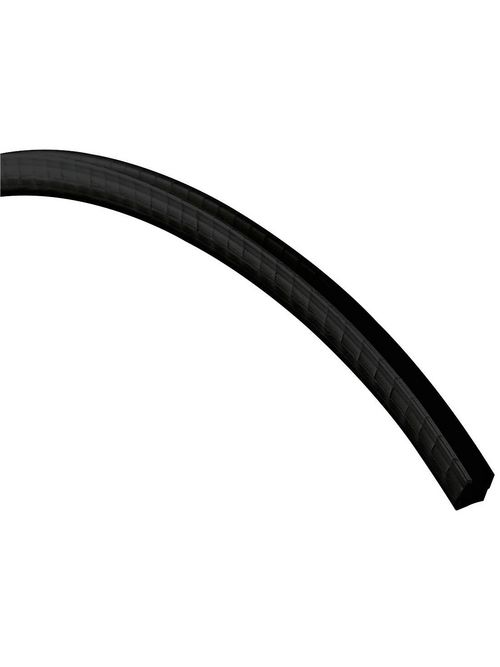

CM GRNY-085-0-C GROMMETING EXTD .08

Features

• Used to line panel edges and knockouts where the chafing of wires is a concern.
• Available in 8 stock sizes in 100-ft. lengths for panels from .040 - .250 inches thick and in a variety of stocked materials to cover a wide range of applications.
• Application Tools: SR-100

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39131603 Grommet edging
• IGCC: 5393 Grommet edging
• Brand Name: Catamount
• Type: Grommeting
• Special Features: Used to line panel edges and knockouts where the chafing of wires is a concern
• Color: Black
• Panel Thickness: 0.085 Inches/2.15mm
• Material: Nylon/Polyamide 6.6

European Specifications (ETIM)

• ETIM: EC000879 Feed through spout
• For wall thickness: 2.15-2.15mm
• Total length: 30480mm
• Model: Open
• Shrink technique: N
• Angle model: N
• Material: Plastic
• Material quality: Polyamide
• Surface protection: Untreated
• Halogen free: Y
• Colour: Black
• Gastight: N
• Fire resistant: Y
• Watertight: N

Packaging

• Inner Quantity: 1
• Inner Dimensions (inches): 15x12x2
• Outer Quantity: 15
• Outer Dimensions (inches): 18.25x13.75x13.5
• Weight Uom: 1 lbs. Each
