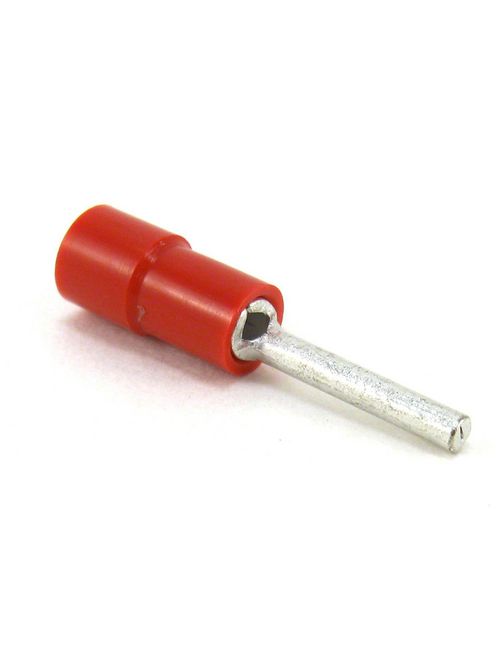

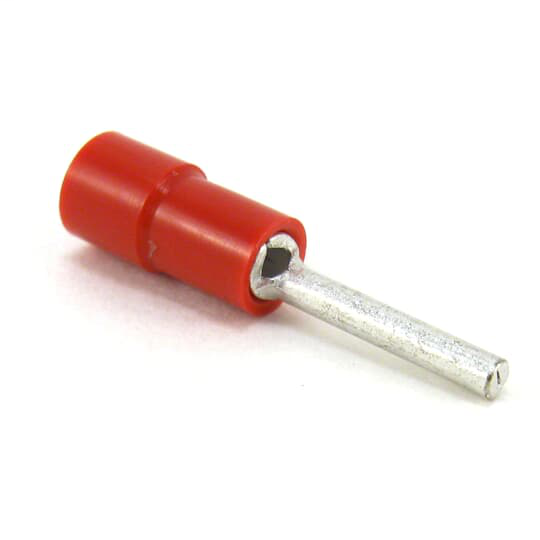

CM TV18-12PT-XV VNYL INS PIN TERM 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$56.54/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Catamount
Mfg Catalog # TV18-12PT-XV
North Coast Part # 549593

Specifications

Ordering

  • EAN: 5414363489290
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .005 lb2.268 g

Container Information

  • Package Level 1 Units: 75 piece
  • Package Level 1 Width: 4.5 in114 mm
  • Package Level 1 Height: 4 in102 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 900 piece
  • Package Level 2 Width: 10 in254 mm
  • Package Level 2 Height: 8 in203 mm
  • Package Level 2 Depth / Length: 11 in279 mm

Additional Information

  • Brand / Label: Catamount
  • Color: Red
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL CONNECTOR,<1000V
  • Product Type: Vinyl Insulated Pin Terminal
  • Special Functions: For Use in Pin-Style terminal blocks. Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations.
  • Standards: UL E9809
  • UPC: 728494144665
  • Voltage Rating: 600 V
  • Wire Size: 22-16 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 72849414466
Item Long Description Insulated Vinyl Pin Terminals for Wire Range 22-16, Red, Canister
GTiN 05414363489290
Finish Electro-Tin Plated
Color Red
Type Insulated
Barrel Type Brazed Seam, Internal Serration
Material Copper
Conductor Size 22-16 AWG
Applications For Copper Conductors
Wire Size 22-16 AWG
Temperature Rating 75 C
Family Brand Name Catamount
Insulation Material PVC
Overall Length 0.898 in
Barrel Length 0.433 in
Pin Length 0.472 in
Used With Pin-Style Terminal Blocks
Sub Brand Catamount
Voltage 600 Volt
Standard UL E9809
