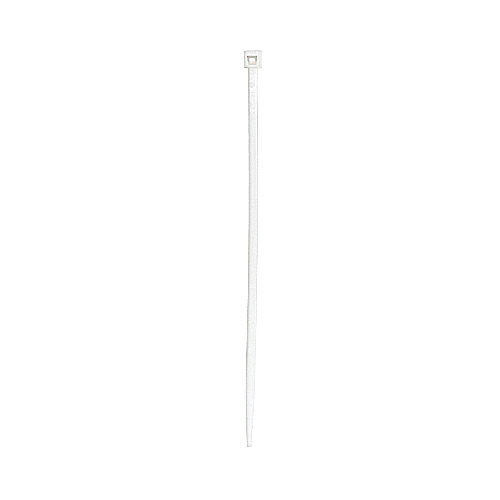

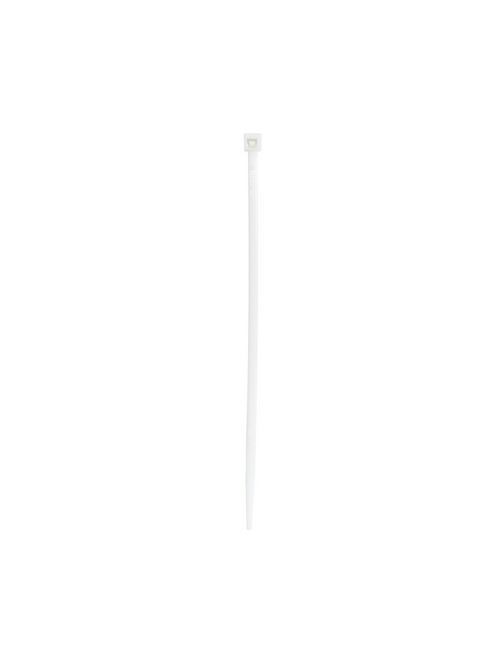

Ty-Fast TY400-50 60.6 Inch 50 lb Natural Nylon Cable Tie

Features

• The integrally formed nylon pawl combines low insertion and high locking strength.
• Application Tools: ERG50, QC-100, L-200, L-400-C

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121703 Cable ties
• IGCC: 5034 Cable ties
• Brand Name: Ty-Fast
• Type: Standard
• Special Features: The integrally formed nylon pawl combines low insertion and high locking strength.
• Standard: UL E49405
• Width: 0.184 in ; 4.674 mm
• Length: 14.4 in ; 365.76 mm
• Thickness: 0.049 Inch/1.24mm
• Bundle Diameter: 0.06 Inches/1.6mm-4.02 Inches/102mm
• Material: Nylon/Polyamide 6.6
• Color: Natural
• Lock Mechanism: Plastic Pawl
• Tensile Strength: 50 Pounds/220 Newtons

European Specifications (ETIM)

• ETIM: EC000046 Cable tie
• Band width: 4.673mm
• Length belt/tape/tie: 365.76mm
• Tie thickness: 1.24mm
• Max. bundle diameter: 101.6mm
• Min. holding force: 220N
• Operating temperature: -40-+85°C
• Model: Internal toothing
• Band closure: Plastic lip/-cam
• Material: Plastic
• Material quality: Polyamide PA
• Surface protection: Untreated
• Halogen free: Y
• Colour: Natural colour
• Transparent: N
• Reflective (fluorescent): N
• Text strip: None
• Solvable fastener: N
• MIL approval: N
• UL approval: Y

Packaging

• Inner Quantity: 1000
• Inner Dimensions (inches): 21x15x4
• Outer Quantity: 5000
• Outer Dimensions (inches): 18.7x13.95x13.5
• Weight Uom: 5 lbs. per 1000
