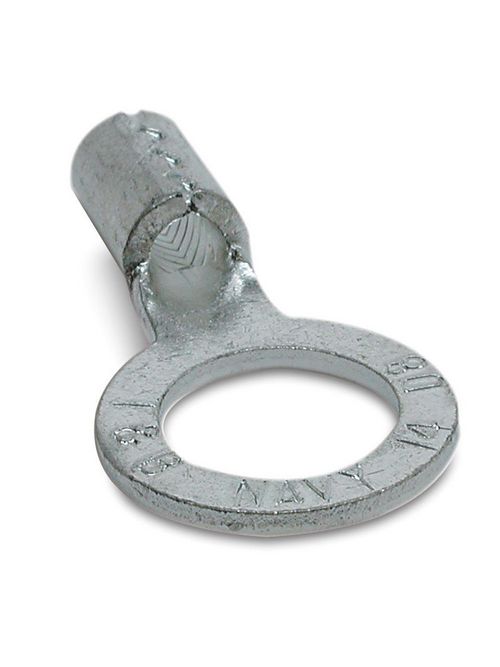

Thomas & Betts D8-14-SK Non-Insulated Large Ring Terminal - #8, 1/4"bolt
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$278.57/c (100 ea)
Usually ships within 9 to 13 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # D8-14-SK
North Coast Part # 65463

Features

  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

General

  • Color: Metallic
  • Material: Copper
  • Insulation Type: Non-Insulated - Brazed Seam
  • Stud Size: 1/4
  • Finish: Electro Tin-Plated
  • Wire Range: 8
  • Terminal Series: D

Dimension Information

  • B (inches): .48
  • A (inches): 1.13
  • C (inches): .36
  • M (inches): .90
  • Stock Thickness: .06

Specifications

  • Temperature Rating: 150°C
  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0

Tooling

  • Application Tools: WT115A, TBM6, TBM6S, WT3185
  • Recommended Tool: TBM6S

Packaging

  • Package Length: 10.75
  • T&B Weight Per UOM: 1.31 lbs. per 100
  • Inner Package: 25
  • Outer Package: 125
  • Package Width: 9
  • Order Multiple: 25
  • Package Height: 7
  • T&B Sold in UOM: Each
  • Alternate Package Qty: D71
  • Package Type: Standard

Application Support

Notes

  • Not available on Mylar Tape.

Certifications

  • UL
  • CSA
  • RoHS Compliance: Yes

Overview

GTiN 05414363150145
Finish Tin Plated
Color Metallic
Voltage 600 Volt
Type Short Sleeve
Thickness .06 in
Insulation Type Non-Insulated - Brazed Seam
Material Copper
Stud Size 1/4 in
Terminal Type D
Conductor Size 8 AWG
Wire Size 8 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Flamability Class Rated V-0 Per UL94
Used With Round Conductors
Sub Brand Sta-Kon
Product UPC 78621080354
