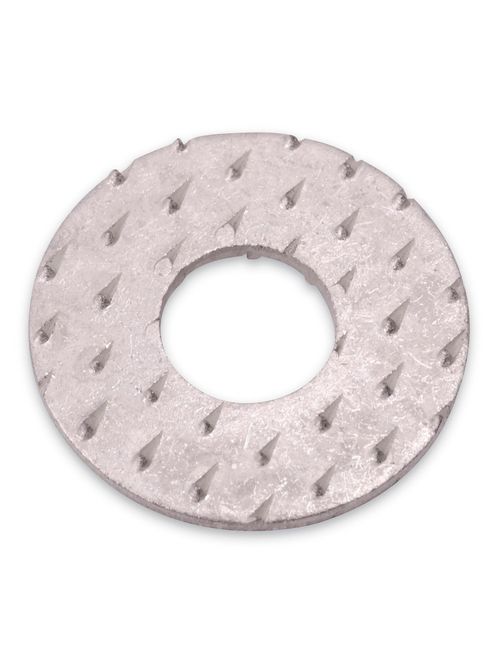

CU TP TRANSITION WASHER 1/2INBOLT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$390.87/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # DTW12
North Coast Part # 154898

Features

  • Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
  • Transition washers also accommodate the difference in thermal expansion between copper and aluminum, and enhances the efficiency of bolted grounding connections.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 31161807 Flat washers
  • IGCC: 2885 Flat washers
  • Brand Name: Color-Keyed
  • Type: Transition Washer
  • Application: Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
  • Standard: UL E9809
  • Material: Copper
  • Finish: Tin Plated
  • Thickness: 0.035 Inch/0.89mm
  • Outside Diameter: 1.25 Inches/31.8mm
  • Inside Diameter: 0.56 Inch/14.2mm
  • Fits Bolt Sizes: 1/2 Inch
  • Color: Silver

European Specifications (ETIM)

  • ETIM: EC002345 Serrated lock washer
  • Material: Other
  • Material quality: Other
  • Surface protection: Other
  • Model: Double toothing
  • Inner diameter: 14.2mm
  • Outer diameter: 31.8mm
  • Thickness: 0.89mm

Packaging

  • Inner Quantity: 100
  • Inner Dimensions (inches): 3.3x2.8x2.3
  • Outer Quantity: 1000
  • Outer Dimensions (inches): 12.6x4.1x6.4
  • Weight Uom: 1.13 lbs. per 100

Overview

GTiN 05414363150275
Finish Tin Plated
Color Silver
Type Transition Washer
Thickness 0.035 in
Material Copper
Applications Teeth on the Transition Washers Penetrate Aluminum and Copper Oxides, Enabling Copper to Aluminum Connections to be Made in a Bolted Joint without the set of Inhibiting Compounds
Family Brand Name Color-Keyed
Outside Diameter 1-1/4 in
Inside Diameter 0.56 in
Product UPC 78621086962
Standard UL E9809
Sub Brand Color-Keyed
Box Quantity 1000
