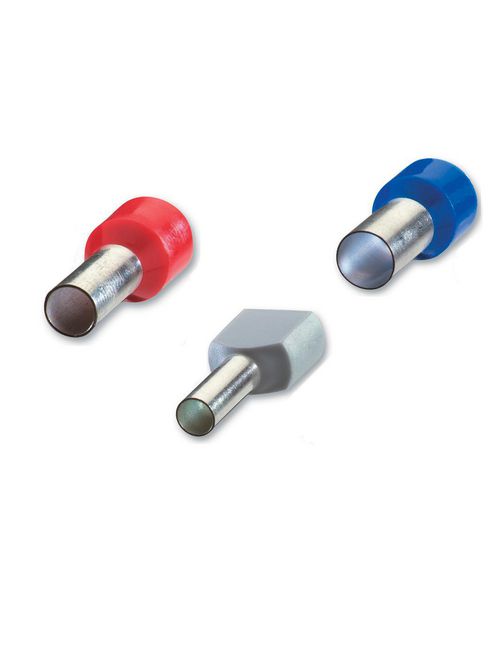

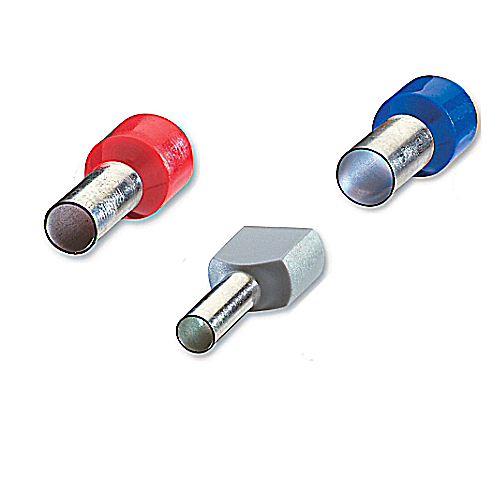

Thomas & Betts F4000 20 AWG 0.5 mm² Insulated Nylon Ferrule
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$44.55/c (100 ea)
In Stock | 1000 available at 1 location
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # F4000
North Coast Part # 15563

Features

  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
  • Application Tools: T1, T3, ERG4

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121432 Electrical terminals
  • IGCC: 4603 Electrical terminals
  • Brand Name: Sta-Kon
  • Type: Ferrule
  • Special Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
  • Standard: UL E489056
  • Wire Size: 20
  • Material: Copper
  • Color: Orange

European Specifications (ETIM)

  • ETIM: EC000005 Cable end sleeve
  • Construction type: Standard
  • Nominal cross section: 0.5mm²
  • Insulated: Y
  • Insulation material: Polypropylene
  • Colour: Orange
  • Material: Copper
  • Surface protection: Tinned
  • With identification flag: N
  • Reel packaging: N

Packaging

  • Inner Quantity: 500
  • Outer Quantity: 10000
  • Outer Dimensions (inches): 6.5x4.5x4
  • Weight Uom: 0.63 lbs. per 1000

Categories

Overview

UPC 78621033668
Item Long Description Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .043 Inches/1.1mm, Base Diameter .102 Inches/2.6mm, Wire Range #20 AWG/.50mm2, Color Orange, Copper, Tin Plated
GTiN 00786210336688
Color Orange
Type Polypropylene Insulated Ferrule
Material Copper
Conductor Size 20 AWG
Wire Size 20 AWG
Family Brand Name Thomas & Betts
Contact Material Copper
Sub Brand Sta-Kon
Standard UL E489056
Construction Type Standard
Box Quantity 10000
