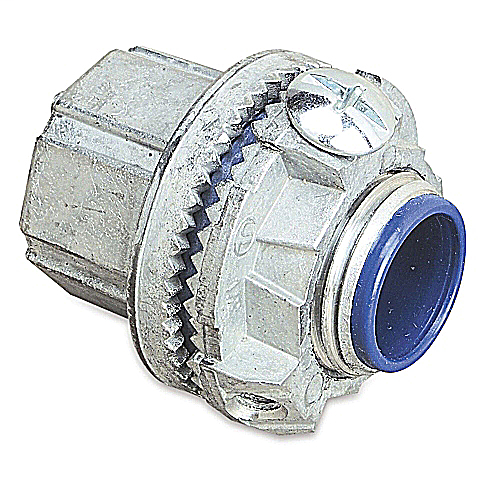

Thomas & Betts H200GRSST 2 Inch Stainless Steel Hub
Product image thumbnail 0
Product image thumbnail 1
$77,064.40/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # H200GRSST
North Coast Part # 15090

Features

  • Suitable for hazardous locations use in Class I, Division 2; Class II, Division 1&2; Class III, Division 1 & 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a)
  • Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
  • Meets NEMA sealing requirements for NEMA 3R, 4, 4X and 13 enclosures

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39131707 Electrical conduit coupling
  • IGCC: 5548 Electrical conduit coupling
  • Brand Name: T&B
  • Type: Grounding Hub
  • Special Features: Hexagonal/Splined Body and Locknut Enable Fast and Easy Installation
  • Application: For Use with Rigid/IMC Conduit
  • Standard: UL E23018, CSA
  • Trade Size: 2 Inch
  • Outside Diameter: 3.25 Inch
  • Length: 1.94 in
  • Material: 316 Stainless Steel

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 2 inch
  • Model: Straight
  • Revolving thread: N
  • Connection type screw connection to housing: Thread
  • Thread type: NPT
  • Material housing: Stainless steel

Packaging

  • Outer Quantity: 5
  • Outer Dimensions (inches): 7.6x6.6x3.5
  • Weight Uom: 1.29 lbs. Each

Overview

UPC 78621000283
GTiN 05415022396553
Length 1.94 in
Size 2 in
Type Straight
Material 316 Stainless Steel
Applications For Use with Rigid/IMC Conduit
Trade Size 2 Inch
Connection Type NPT
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Housing Material Stainless Steel
Box Quantity 5
Outside Diameter 3.25 in
Blade Dimensions 1-31/32 in ID x 3-1/4 in OD x 1-15/16 in L
Thread Type NPT
Used With Rigid/IMC Conduit
