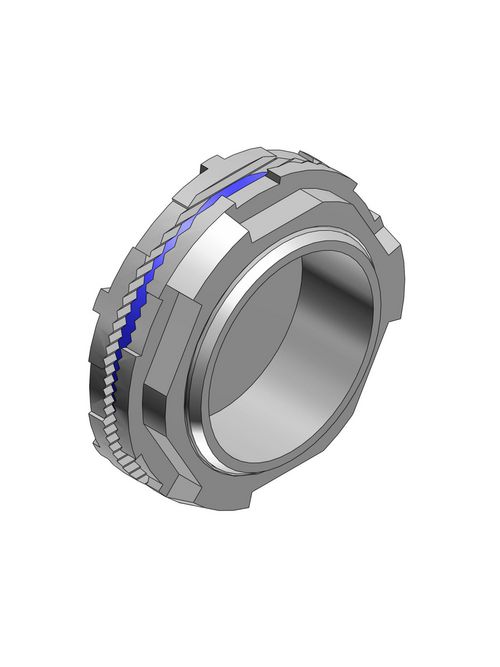

TB H600CAP ZINC BULLET HUB CAPOFF 6
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$89,661.15/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # H600CAP
North Coast Part # 827923

Specifications

Ordering

  • EAN: 0786210044873
  • Customs Tariff Number: 8547900030

Dimensions

  • Product Net Weight: 6.43 lb2.916 kg

Container Information

  • Package Level 2 Units: 1 piece
  • Package Level 2 Width: 8.6 in218 mm
  • Package Level 2 Height: 3.4 in86 mm
  • Package Level 2 Depth / Length: 8.6 in218 mm

Additional Information

  • Application: For Use with Rigid/IMC Conduit
  • Brand / Label: T&B
  • Material: Zinc
  • Nominal Size: 6 in
  • Number of Batteries: 0
  • Outside Diameter: 7-5/8 in
  • Product Name: INSULATED CONDUIT FITTING
  • Product Type: Hubs & Accessories
  • Special Functions: Insulating Throat with a Thermoplastic Temperature Rating of 105 Degrees Celsius
  • Standards: UL E23018, CSA
  • UPC: 786210044873

Classifications

  • ETIM 6: EC001180 - Screw connection for protective metallic hose
  • ETIM 7: EC001180 - Screw connection for protective metallic hose
  • UNSPSC: 39131707
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 5548 >> Electrical conduit coupling

Overview

UPC 78621004487
Item Long Description 6 Inch Zinc Capoff with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
GTiN 00786210044873
Length 3 in
Type Insulated
Material Die-Cast Zinc
Applications For Use with Rigid/IMC Conduit
Trade Size 6 Inch
Family Brand Name Thomas & Betts
Outside Diameter 7-5/8 in
Standard CSA,UL E23018
Size 6 in
Connection Type NPT
Temperature Rating 0 - 105 C
Blade Dimensions 7-5/8 in OD x 3 in L
Used With Rigid/IMC Conduit
