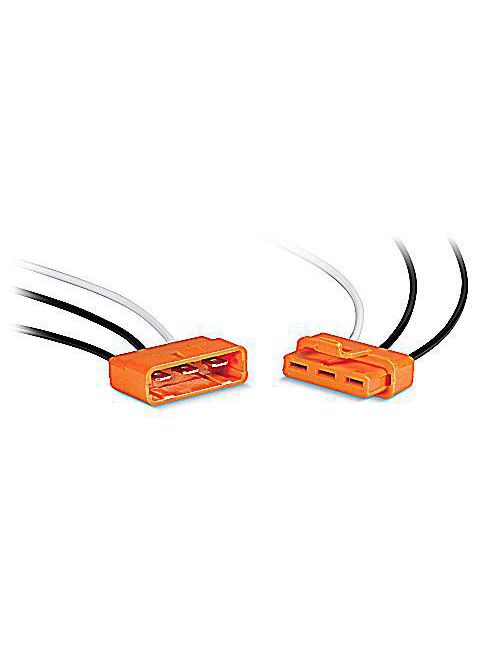

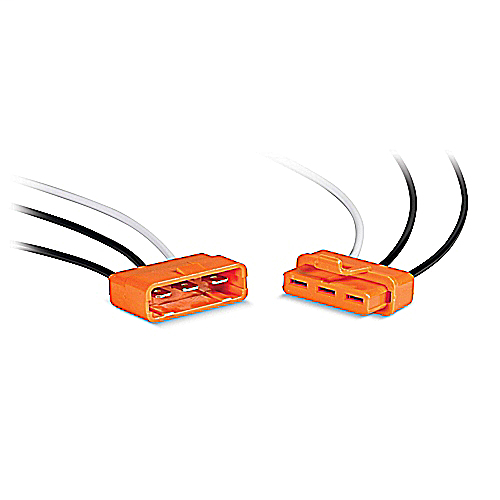

TBP LD3 3P LUMINAIRE DISC KIT

Features

• Oversized electrical contacts improve conductivity and reduce temperature rise.
• Integral wire leads ease installation.
• Fool-proof design enables mating halves to be installed in only one way.
• Finger-safe line side prevents installer from touching hot contacts.
• Rounded compact design small enough to be used in compact applications - fits through 1/2" knockout.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121447 Wire terminal disconnect
• IGCC: 4667 Wire terminal disconnect
• Brand Name: Sta-Kon
• Type: Disconnects
• Special Features: Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2" knockout.
• Standard: UL E307134
• Voltage Rating: 600V
• Amperage Rating: 4
• Material: Brass
• Finish: Tin Plated
• Color: Orange

European Specifications (ETIM)

• ETIM: EC000458 Connector for luminaire
• Model: Other
• Connection type: Plug-in connection
• Nominal voltage: 600V

Packaging

• Inner Quantity: 2
• Inner Dimensions (inches): 1x4.34x10.25
• Outer Quantity: 20
• Outer Dimensions (inches): 13.6x11x12.3
• Weight Uom: 11.5 lbs. per 100
