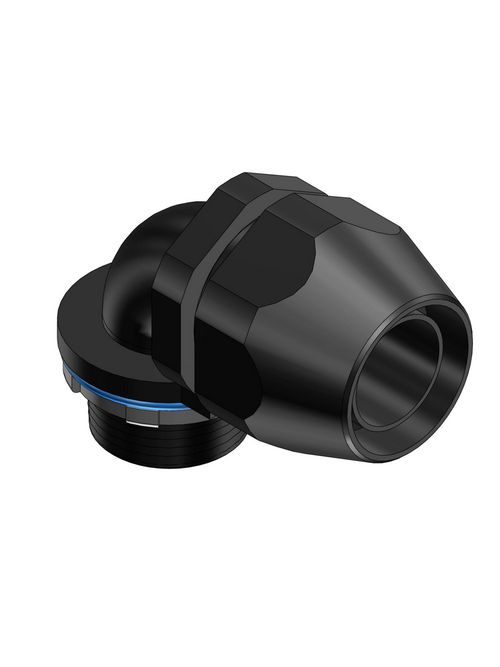

Thomas & Betts LT9100P 1 Inch 90 Degree Bullet Connector

Features

• Outside surface has friction reducing ridges.
• Inner surface teeth bite into conduit or tubing to enhance clamping and sealing action.
• Fitting ferrule designed to accept variations in conduit sizes and field conduit cuts.
• Smooth ferrule profile reduces friction to ensure a tight conduit-to-fitting seal.
• Suitable for hazardous locations; Class I Div 2; Class II Div 1 & 2; Groups E, F, G; Class III per N.E.C.; Article 501-4, 502-4 and 503-3

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121420 Liquid tight connectors
• IGCC: 4585 Liquid tight connectors
• Brand Name: T&B
• Type: Bullet-90 Degree
• Application: T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
• Standard: UL E23018, CSA
• Size: 1 Inch
• Material: Thermoplastic

European Specifications (ETIM)

• ETIM: EC001178 Screw connection for protective plastic hose
• Nominal size in inch: 1 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Type of connection: Thread
• Thread connection size: Other
• Thread length: 18.44mm
• Material screw gland: Other
• Material sealing: Other
• Colour: Black

Packaging

• Inner Quantity: 5
• Inner Dimensions (inches): 8x5x4
• Outer Quantity: 25
• Outer Dimensions (inches): 26.75x8.5x5
• Weight Uom: 25 lbs. per 100
