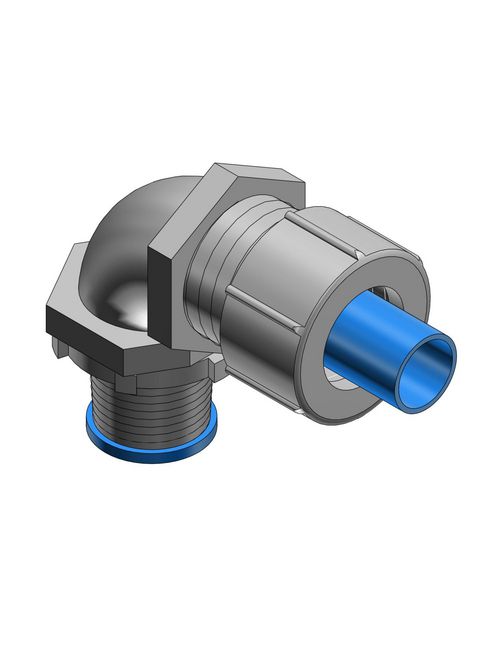

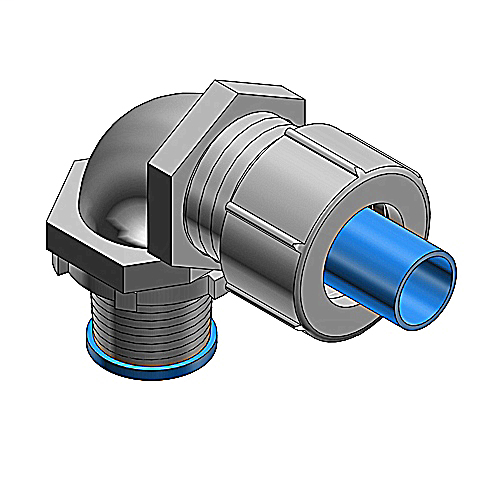

Thomas & Betts LT938M 90 Degree Metallic Connector
Product image thumbnail 0
Product image thumbnail 1
$2,248.32/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # LT938M
North Coast Part # 18774

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121420 Liquid tight connectors
  • IGCC: 4585 Liquid tight connectors
  • Brand Name: T&B
  • Type: Bullet-90 Degree
  • Application: T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
  • Standard: UL E23018, CSA
  • Size: 3/8 Inch
  • Material: Steel

European Specifications (ETIM)

  • ETIM: EC001178 Screw connection for protective plastic hose
  • Nominal size in inch: 3/8 inch
  • Model: 90°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Type of connection: Thread
  • Thread connection size: Other
  • Thread length: 15.9mm
  • Material screw gland: Metal
  • Material sealing: Polyamide
  • Colour: Other

Packaging

  • Inner Quantity: 25
  • Inner Dimensions (inches): 6x5x4
  • Outer Quantity: 50
  • Outer Dimensions (inches): 9.1x5.2x7
  • Weight Uom: 19.5 lbs. per 100

Overview

UPC 78621045050
GTiN 05414363154983
Length 33.3 mm
Size 3/8 Inch
Color Other
Type 90
Material Steel
Applications T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
Trade Size 3/8 Inch
Construction Type External Thread
Thread Length 15.9 mm
Family Brand Name Thomas & Betts
Carton Qty 25
Box Quantity 50
TC Connection Male Threaded
Thread Type NPT
