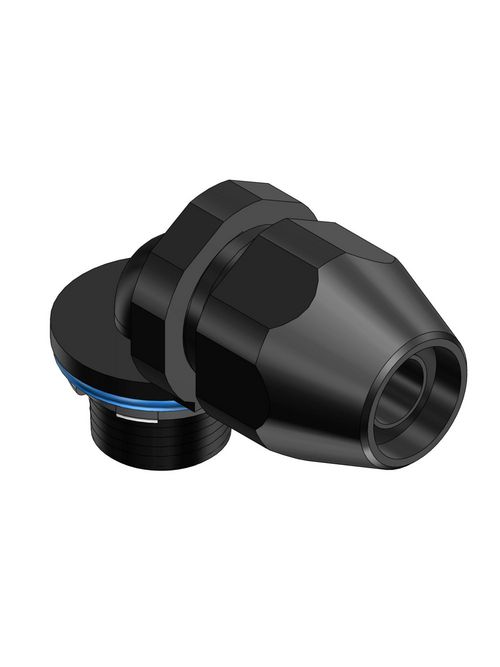

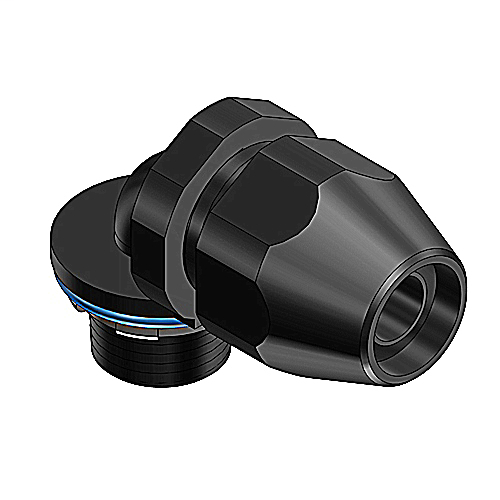

Thomas & Betts LT938P 3/8 Inch 90 Degree Bullet Connector
$2,581.82/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # LT938P
North Coast Part # 18786

Features

  • Outside surface has friction reducing ridges.
  • Inner surface teeth bite into conduit or tubing to enhance clamping and sealing action.
  • Fitting ferrule designed to accept variations in conduit sizes and field conduit cuts.
  • Smooth ferrule profile reduces friction to ensure a tight conduit-to-fitting seal.
  • Suitable for hazardous locations; Class I Div 2; Class II Div 1 & 2; Groups E, F, G; Class III per N.E.C.; Article 501-4, 502-4 and 503-3

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121420 Liquid tight connectors
  • IGCC: 4585 Liquid tight connectors
  • Brand Name: T&B
  • Type: Bullet-90 Degree
  • Application: T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
  • Standard: UL E23018, CSA
  • Size: 3/8 Inch
  • Material: Thermoplastic

European Specifications (ETIM)

  • ETIM: EC001178 Screw connection for protective plastic hose
  • Nominal size in inch: 3/8 inch
  • Model: 90°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Type of connection: Thread
  • Thread connection size: Other
  • Thread length: 14.48mm
  • Material screw gland: Other
  • Material sealing: Other
  • Colour: Black

Packaging

  • Inner Quantity: 10
  • Inner Dimensions (inches): 6x5x4
  • Outer Quantity: 50
  • Outer Dimensions (inches): 26.6x6.7x5.2
  • Weight Uom: 11.13 lbs. per 100

Overview

UPC 78621045071
GTiN 05414363100751
Size 3/8 Inch
Color Black
Type 90
Diameter 10.6 mm ID x 34.4 mm OD
Material Thermoplastic
Applications T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
Trade Size 3/8 Inch
Construction Type External Thread
Thread Length 14.48 mm
Family Brand Name Thomas & Betts
Carton Qty 10
Box Quantity 50
TC Connection Plug-in x NPT
